| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
489 pcs
|
489 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Industrial Grade | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| MIL-DTL-55302 | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pick & Place Pad | |
| Pick and Place Pad | |
| Pitch | |
| SMT Coplanarity | |
| SVHC Present | |
| Shielded | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating (Nominal @ AC) | |
| Voltage Rating (Nominal @ DC) |

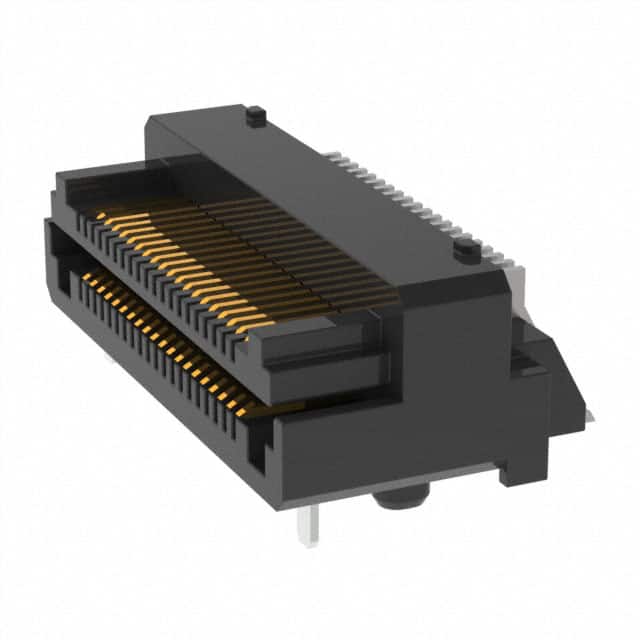

The Samtec LSHM-120-01-L-DH-A-N-K-TR is a 40 position self-mating (hermaphroditic) connector from the Razor Beam series. It features a 0.50mm pitch and a right angle surface mount termination style. The connector has two rows of contacts with gold plating (10.0µin on contact, matte tin on tail) over phosphor bronze base material. The insulator is black LCP.
Electrical ratings include 2.0A per pin current rating and voltage ratings of 160 VAC and 226 VDC. The operating temperature range is -55°C to +125°C. The connector is qualified under MIL-DTL-55302 for severe environment testing and is lead-free solderable.
Mechanical features include a board guide and a polyimide film pick and place pad for automated assembly. The SMT coplanarity is controlled to 0.10mm maximum. The connector is unshielded and uses standard lead style 01. It is supplied in tape and reel packaging.
This connector is designed for parallel, perpendicular, or coplanar board-to-board applications. The self-mating design reduces inventory complexity by using identical connectors on both boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.01 | $6.01 |
| 10+ | $5.46 | $5.46 |
| 25+ | $5.17 | $5.17 |
| 50+ | $5.03 | $5.03 |
| 100+ | $4.67 | $4.67 |
| 250+ | $4.58 | $4.58 |
| 500+ | $4.58 | $4.58 |
| 1,000+ | $4.23 | $4.23 |
| 2,000+ | $3.85 | $3.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions arranged in 2 rows.
0.50mm.
2.0 A per pin.
160 VAC and 226 VDC.
Surface mount, right angle.
-55°C to +125°C.
Yes, it is qualified for severe environment testing per MIL-DTL-55302.
