Mfr Part #:

LSH-020-01-G-D-A-K-TR

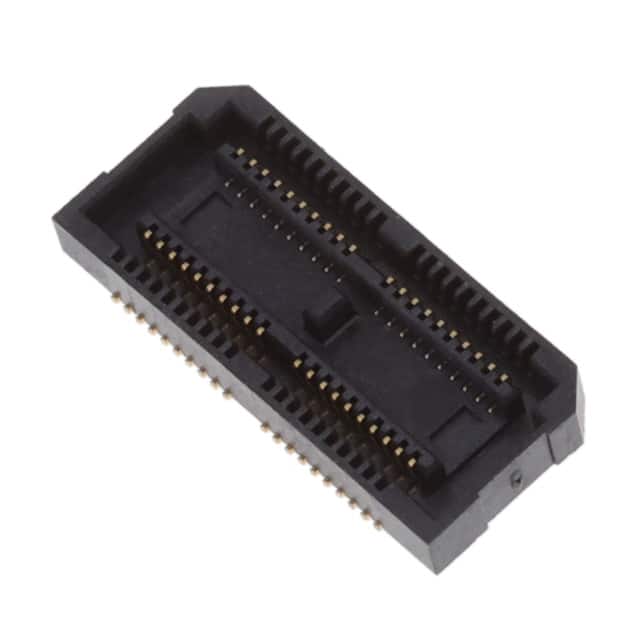

Samtec LSH series 40 position, 2 row, 0.50mm pitch surface mount receptacle with center strip contacts. Gold plated contacts, rated for 2.6A per pin and 14 Gbps data rate.

✓ Total Stock: 115 pcs

$ Price Range: $2.36 - $3.69

LSH-020-01-G-D-A-K-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	115 pcs On Request	115 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

LSH-020-01-G-D-A-K-TR Description

Short technical summary and product information.

The Samtec LSH-020-01-G-D-A-K-TR is a 40 position, 2 row, 0.50mm pitch surface mount receptacle from the LSH series. It features center strip contacts with gold plating over 50 µ" nickel, ensuring reliable signal integrity. This connector is designed for high-density board-to-board and mezzanine stacking applications.

Key electrical specifications include a current rating of 2.6 A per pin (with 2 pins powered), a voltage rating of 188 VAC / 266 VDC, and support for data rates up to 14 Gbps. The operating temperature range spans -55°C to +125°C, making it suitable for demanding environments.

The insulator is molded from liquid crystal polymer (LCP), and contacts are made of beryllium copper (BeCu) with phosphor bronze terminals. The connector includes a board guide and a polyimide film pick and place pad for automated assembly. The mated stacking height is 2.31 mm with the -01 lead style.

Packaging is tape and reel for surface mount assembly. The part is lead-free solderable and has a maximum SMT lead coplanarity of 0.10 mm.

LSH-020-01-G-D-A-K-TR Quick Information

Product Type: Receptacle, Center Strip Contacts

Series: LSH

Canonical Name: Samtec LSH Series 40 Position 0.50mm Pitch Surface Mount Receptacle, Center Strip Contacts

Subcategory: Mezzanine Connectors

LSH-020-01-G-D-A-K-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

LSH-020-01-G-D-A-K-TR Estimated Pricing

Qty	Low	High
1+	$3.69	$3.69
10+	$3.03	$3.03
50+	$2.89	$2.89
100+	$2.79	$2.79
250+	$2.66	$2.66
500+	$2.63	$2.63
950+	$2.36	$2.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

LSH-020-01-G-D-A-K-TR Features

40 position, 2 row, 0.50mm pitch.
Rated for 2.6A per pin current.
Supports 14 Gbps data rate.
Gold plated BeCu contacts.
Includes board guide and pick and place pad.

LSH-020-01-G-D-A-K-TR Applications

Ideal for high-density board-to-board connections.
Used in mezzanine stacking applications.
Suitable for high-speed data transmission.
Designed for automated assembly with pick and place.

LSH-020-01-G-D-A-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the LSH-020-01-G-D-A-K-TR have?

40 positions arranged in 2 rows.

What is the pitch of this connector?

0.50 mm (0.020").

What is the current rating?

2.6 A per pin (typical, with 2 pins powered).

What is the voltage rating?

188 VAC / 266 VDC.

What is the mounting type?

Surface mount.

What is the data rate capability?

14 Gbps.

What is the operating temperature range?

-55°C to +125°C.

Category	Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Name	Samtec Inc.
Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	BeCu
Current Rating	2.6 A per pin
Data Rate	14 Gbps
Features	Board Guide, Pick and Place
Height Above Board	0.075" (1.90mm)
Insulator Material	Liquid Crystal Polymer
Lead Spacing	0.5 mm
Lead Style	-01
Lead-Free Solderable	Yes
Mated Stacking Heights	2.31mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Operating Temperature Range	-55°C to +125°C
Pitch	0.50mm
SMT Lead Coplanarity	0.10mm (0.004") max
Tape & Reel	Yes
Terminal Material	Phosphor Bronze
Voltage Rating	188 VAC / 266 VDC
