This Prysmian Group LSF32CW cable gland kit is suitable for indoor and outdoor applications with SWA (steel wire armour) cables. It is designed for circular, galvanized-steel single-wire-armour plastic or rubber sheathed cables.
The kit provides an outer seal that grips the cable sheath and features a three-part armour lock with a separate armour locking ring for checking electrical continuity. It is weatherproof and waterproof, suitable for use in most climatic conditions.
Key specifications include a minimum cable diameter of 23.5mm and a maximum cable diameter of 33.5mm. The gland is rated to IP66 when used with a suitable sealing washer or thread sealant. The operating temperature range is -20°C to +90°C. The material used is CuZn39Pb3 extruded brass alloy for strength and performance. The series is LSF-CW, indicating Low Smoke Zero Halogen properties.

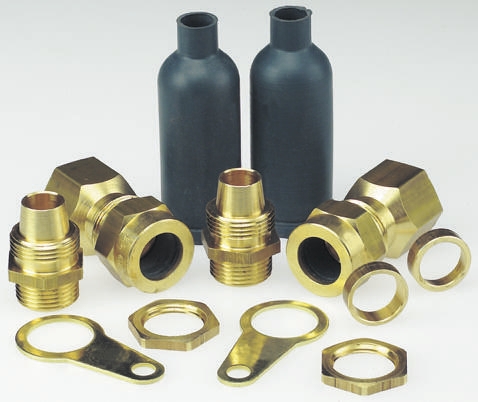

The kit comprises the CW Gland, a brass earth tag, a brass locknut, and an LSF shroud. It is designed for an M32 x 1.5 entry thread.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-20 °C to 90 °C.
23.5 mm to 33.5 mm.
M32 x 1.5.
IP66.
Steel.
LSF-CW.
1 core.
