LSD2B The Honeywell LSD2B is a DPDT limit switch designed for demanding applications. It features a 10A/120VAC rating and operates within a temperature range of -12°C to 93°C.
Mfr Part #:

LSD2B

Available from 1 distributors
Mfr Name: Honeywell
Honeywell
The Honeywell LSD2B is a DPDT limit switch designed for demanding applications. It features a 10A/120VAC rating and operates within a temperature range of -12°C to 93°C.
✓ Total Stock: 1 pcs
$ Price Range: $0.75

LSD2B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LSD2B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Differential Travel
Lead Spacing
Lead Style
Mounting Type
Operating Force
Operating Temperature
Overtravel
Pretravel
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

LSD2B Description

Short technical summary and product information.

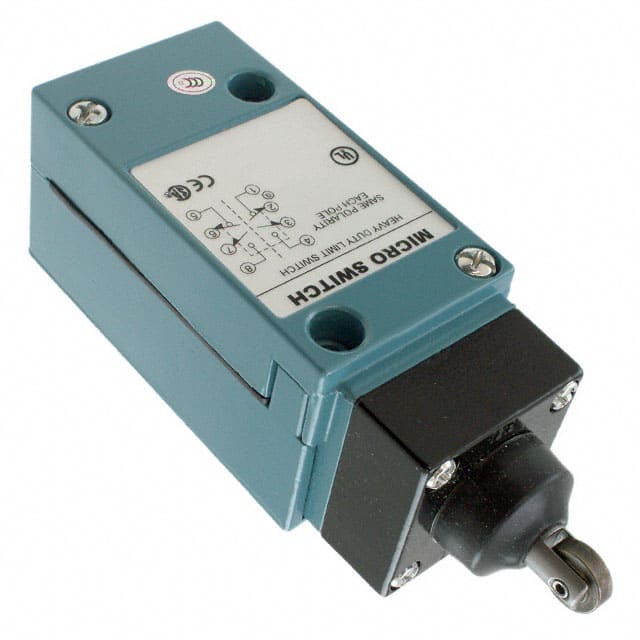

The Honeywell LSD2B is a heavy-duty limit switch from the MICRO SWITCH HDLS series. It features a modular construction with a roller plunger actuator and plug-in termination style. This DPDT switch is rated for 10A at 120VAC and operates reliably in temperatures ranging from -12°C to 93°C.



Designed for demanding environments, the LSD2B offers robust construction with NEMA and IP65/66/67 sealing for protection against dust and water. Its mechanical life is rated up to 50 million actuation cycles, ensuring long-term operational reliability. The switch is suitable for chassis mounting and is ideal for applications in machine tools, material handling, and outdoor electromechanical structures.



Key features include a pretravel of 1.8mm, overtravel of 4.8mm, and a differential travel of 0.5mm. The switch function is On-Mom, providing dependable operation for various industrial automation tasks.

LSD2B Quick Information

Product Type: Limit Switch
Series: HDLS
Canonical Name: Honeywell LSD2B Limit Switch
Subcategory: Snap Action

LSD2B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LSD2B Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

LSD2B Features

  • DPDT circuit for versatile switching.
  • Rated for 10A at 120VAC.
  • Operates from -12°C to 93°C.
  • Roller plunger actuator type.
  • Plug-in termination for easy connection.

LSD2B Applications

  • Ideal for machine tool applications.
  • Suitable for material handling systems.
  • Used in outdoor electromechanical structures.
  • Applicable in balers and compactors.
  • Designed for conveyor systems.

LSD2B FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the Honeywell LSD2B limit switch?

The operating voltage is 120VAC.

What is the operating temperature range for the LSD2B limit switch?

The operating temperature range is -12°C to 93°C.

What type of actuator does the Honeywell LSD2B limit switch use?

It uses a roller plunger actuator.

What is the current rating of the LSD2B limit switch?

The current rating is 10A (AC) and 800mA (DC).

What is the circuit type of the Honeywell LSD2B limit switch?

It features a DPDT circuit.

What is the mechanical life of the Honeywell LSD2B limit switch?

The mechanical life is up to 50 million actuation cycles.
