| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

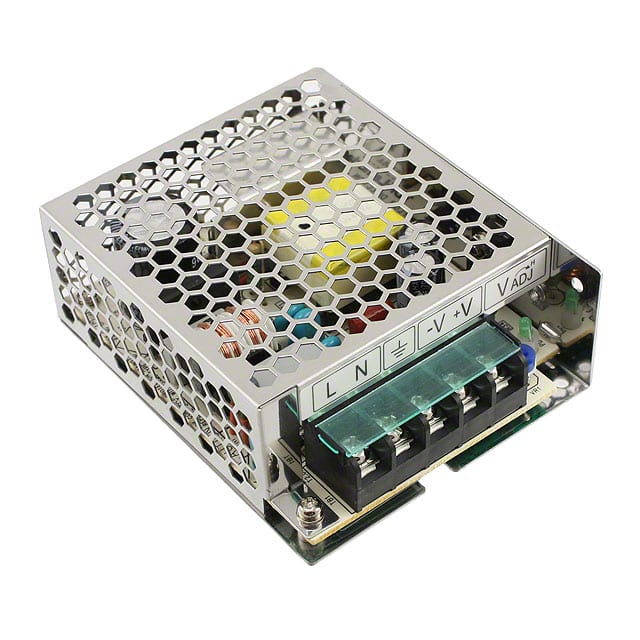

The TDK Corporation LS35-3.3 is an enclosed AC DC converter designed for general purpose light industrial use. It provides a single output of 3.3V at up to 7A, delivering a total power of 35W. This model features adjustable output, DC input capability, and universal input, making it versatile for various applications.
With a compact design, the LS35-3.3 measures 99.1mm in length, 81.3mm in width, and 35.6mm in height. It is designed for chassis mounting and operates within a temperature range of -25°C to 70°C, with derating applied at higher temperatures. The converter boasts an efficiency of 75% and an isolation voltage of 3kV.
Key features include its ability to withstand 300Vac input surges for up to five seconds and conservatively rated electrolytic capacitor temperatures for extended field life. It is suitable for ITE (Commercial) applications and carries CE approval.
The output voltage is 3.3V.
The output current is 7A.
The output power is 35W.
The operating temperature range is -25°C to 70°C with derating.
The mounting type is chassis mount.
The efficiency is 75%.
The isolation voltage is 3kV.
