| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

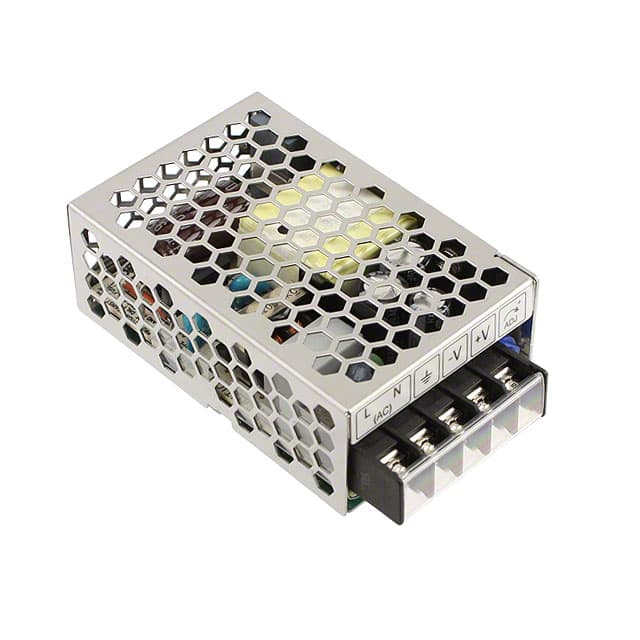

The TDK Corporation LS25-3.3 is part of the LS25-150 series of general-purpose power supplies designed for light industrial use. This enclosed AC/DC converter provides a single output of 3.3V at a maximum current of 6A, for a total power output of 25W. It is designed for chassis mounting and offers features such as adjustable output and universal input capability.
The operating temperature range for this unit is -25°C to 70°C, with derating applied outside this range. The power supply is built with conservatively rated electrolytic capacitors for extended field life and can withstand input surges up to 300Vac for five seconds. It comes with a five-year warranty.
Key specifications include an efficiency of 75% and dimensions of 78.7mm x 50.8mm x 27.9mm. The LS25-3.3 is suitable for ITE (Commercial) applications and carries CE approval.
3.3V.
6A.
25W.
-25°C to 70°C with derating.
75%.
Enclosed chassis mount.
5 years.
300Vac for up to five seconds.
