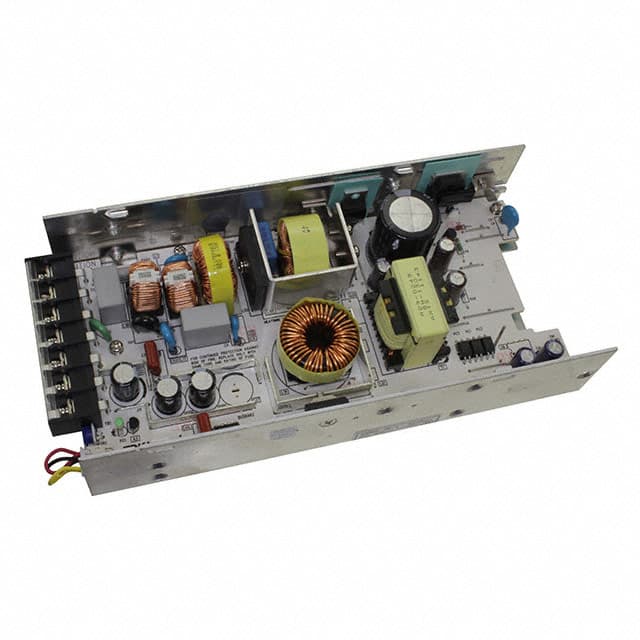

The TDK Corporation LS200-36/L is a versatile 200W AC/DC power supply designed for general-purpose applications. It offers a single 36V output and operates with a wide AC input voltage range of 85-264VAC.
This power supply features an open frame construction and chassis mount for easy integration into systems. Key electrical specifications include a 5.6A current rating, 85% typical efficiency, and protections such as overcurrent, overvoltage, and overtemperature.
The operating temperature range is -25°C to +70°C, with derating applied at higher temperatures. It also includes features like remote sense and remote on/off control, making it suitable for various ITE (Commercial) applications.
With dimensions of 199.0mm x 98.0mm x 41.0mm, it provides a compact power solution. The unit comes with a three-year warranty.
85-264 VAC or 120-373 VDC.
Open frame, chassis mount.
-25°C to +70°C with derating above 50°C.
Overcurrent protection (>105% of nominal), overvoltage protection (thresholds vary by output voltage), and overtemperature protection.
85%.
199.0mm x 98.0mm x 41.0mm (7.83" x 3.86" x 1.61").
700 g.
