| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

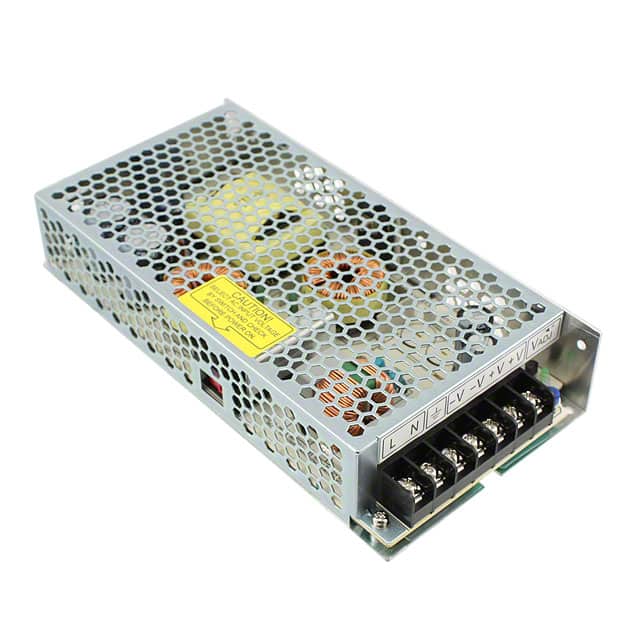

The TDK Corporation LS150-12 is a 150W single-output AC/DC power supply designed for general-purpose light industrial use. It provides a 12V output voltage with a maximum current of 12.5A and an efficiency of 83%.
This enclosed power supply features chassis mounting and a universal input capability, along with adjustable output and DC input options. It operates within a temperature range of -25°C to 70°C with derating and can withstand input surges up to 300Vac for five seconds. The unit is CE approved and suitable for ITE (Commercial) applications.
Key specifications include line and load regulation of 60mV and ripple noise of 120mV. The dimensions are 198.1mm in length, 99.1mm in width, and 38.1mm in height. The LS150-12 is part of the LS25-150 series, known for its compact size and economical pricing.
The LS150-12 has an output voltage of 12V.
The maximum output current for the LS150-12 is 12.5A.
The LS150-12 has a power rating of 150W.
The operating temperature range for the LS150-12 is -25°C to 70°C with derating.
The LS150-12 supports chassis mount.
