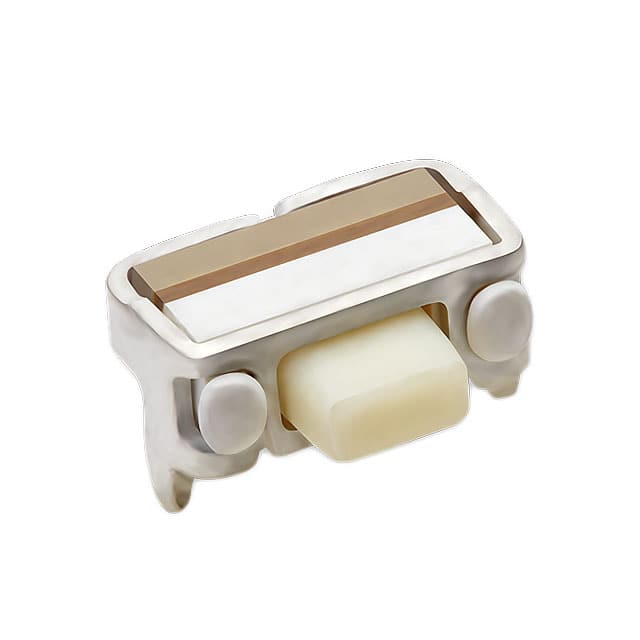

LS10N2-T The Citizen Finedevice LS10N2-T is a tactile switch with a SPST-NO circuit and a contact rating of 0.02A at 12VDC. It features a surface mount, right angle configuration.
Mfr Part #:

LS10N2-T

Available from 3 distributors
Mfr Name: Citizen Finedevice
Citizen Finedevice
The Citizen Finedevice LS10N2-T is a tactile switch with a SPST-NO circuit and a contact rating of 0.02A at 12VDC. It features a surface mount, right angle configuration.
✓ Total Stock: 21,854 pcs
$ Price Range: $0.51

LS10N2-T Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
14,254 pcs
On Request
14254 pcs On Request 1 On Request On Request 13+ On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
4,600 pcs
On Request
4600 pcs On Request 1 On Request On Request 15 On Request On Request
Rayichip ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LS10N2-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length, Right Angle
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Contact Resistance
Illumination
Insulation Resistance
Mounting Type
Operating Force
Outline
Switch Function
Tape & Reel
Termination Style
Withstanding Voltage
View Similar Products (0)

LS10N2-T Description

Short technical summary and product information.

The Citizen Finedevice LS10N2-T is a compact and thin horizontal tactile switch designed for applications like smartphones, mobile devices, and various AV equipment. It features a dust and waterproof mechanism, ensuring durability in demanding environments.



This switch operates with a SPST-NO (Single Pole Single Throw Normally Open) circuit and has a contact rating of 0.02A at 12VDC. The operating force is specified at 1.57N, with a stroke of 0.20mm. The electrical characteristics include a contact resistance of 100mΩ or less and an insulation resistance of 100MΩ or more, with a withstanding voltage of AC250V for one minute. The bounce time is limited to 20ms or less.



Designed for surface mounting at a right angle, the LS10N2-T has an actuator length of 3.50mm. Its dimensions are 4.65mm x 2.30mm. The switch is non-illuminated and features a rectangular button actuator type. It is supplied in tape and reel packaging with a standard quantity of 3,000 pieces per reel.



Key mechanical specifications include an operating life of 100,000 cycles or more. The switch length is 3.5mm. This component is suitable for automated assembly processes due to its SMD (SMT) tab termination style.

LS10N2-T Quick Information

Product Type: Tactile Switch
Series: LS 10
Canonical Name: Citizen Finedevice LS10N2-T Tactile Switch
Subcategory: Tactile Switch

LS10N2-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LS10N2-T Estimated Pricing

Qty Low High
1+ $0.51 $0.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

LS10N2-T Features

  • Compact and thin horizontal tactile switch.
  • Dust and waterproof mechanism for durability.
  • SPST-NO circuit with 0.02A @ 12VDC rating.
  • Surface mount, right angle configuration.
  • 100,000 cycle minimum operating life.

LS10N2-T Applications

  • Ideal for smartphones and mobile devices.
  • Suitable for various AV equipment applications.
  • Used in products requiring dust protection.
  • Applicable in wet or splash-prone environments.

LS10N2-T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating force of the LS10N2-T switch?

The operating force is 1.57N.

What is the maximum rating of the LS10N2-T switch?

The maximum rating is 20mA at DC12V.

What is the contact resistance of the LS10N2-T?

The contact resistance is 100mΩ or less.

What is the insulation resistance of the LS10N2-T?

The insulation resistance is 100MΩ or more.

What is the withstand voltage of the LS10N2-T?

The withstand voltage is AC250V for one minute.

What is the operating life of the LS10N2-T?

The operating life is 100,000 cycles or more.
