| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,030 pcs
|
4030 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,694 pcs
|
2694 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Processor | |
| Ethernet | |
| Frequency | |
| Mounting Type | |
| Number of Cores | |
| Operating Temperature | |
| RAM Controllers | |
| SATA | |
| Security Features | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| USB |
The NXP Semiconductors LS1046ASE8T1A is a high-performance microprocessor featuring four 64-bit Arm Cortex-A72 CPUs, capable of operating at speeds up to 1.8 GHz. This processor is designed with a single 2 MB L2 cache shared among the cores, providing efficient data access.
It incorporates a DDR4 SDRAM memory controller with ECC and interleaving support, enabling high-speed memory operations up to 2.1 GT/s. The Data Path Acceleration Architecture (DPAA) includes hardware acceleration for packet parsing, queue management, buffer management, and cryptography, making it suitable for demanding networking and communication applications.
Connectivity is robust, with two RGMII interfaces, multiple SerDes lanes supporting PCI Express 3.0, SATA 6 Gbit/s, and various Ethernet standards including 10 GbE, 2.5 GbE, and 1 GbE. Additional peripherals include USB 3.0 controllers, QSPI, SPI, and an integrated flash controller.

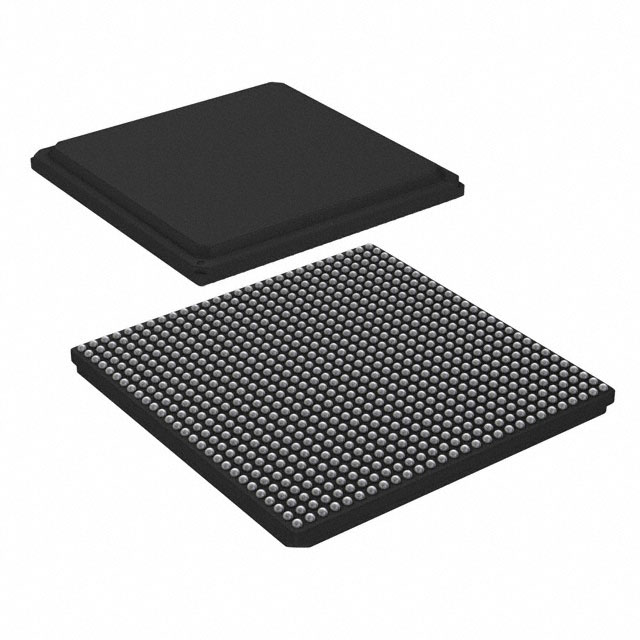

The LS1046ASE8T1A is housed in a 780 FC-PBGA package measuring 23 mm x 23 mm and is designed for surface mounting. It operates within a temperature range of 0°C to 105°C.
The LS1046ASE8T1A features four 64-bit Arm Cortex-A72 CPUs.
The Arm Cortex-A72 cores can operate at speeds up to 1.8 GHz.
It has a 32-bit/64-bit DDR4 SDRAM memory controller with ECC and interleaving support.
The LS1046ASE8T1A includes two 10GbE interfaces, one 2.5GbE interface, and four 1GbE interfaces.
The operating temperature range is 0°C to 105°C.
It is supplied in a 780-FCPBGA (23x23mm) package for surface mounting.
