| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

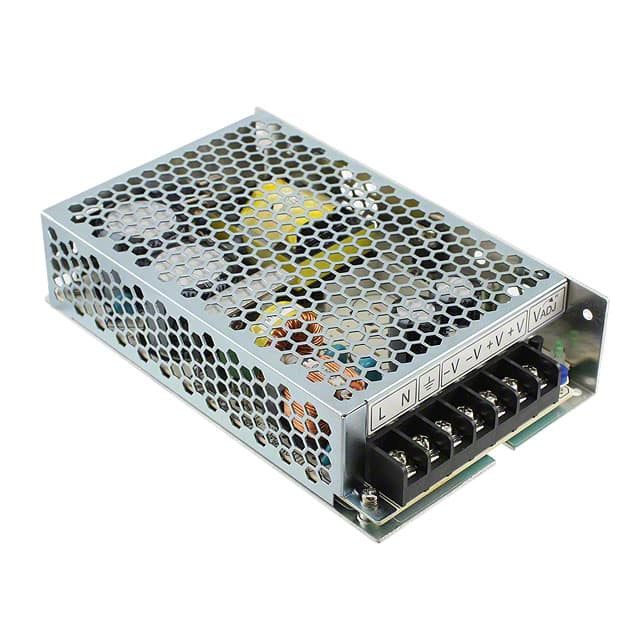

The TDK Corporation LS100-5 is a general-purpose, single-output AC/DC power supply designed for light industrial use. It delivers 100W of power with a nominal output voltage of 5V and a maximum load current of 16A. The unit boasts an efficiency of 79% and features adjustable output, DC input capability, and universal input.
Designed for reliability, the LS100-5 operates within a wide temperature range of -25°C to 70°C with derating. It has a compact, enclosed form factor suitable for chassis mounting, with dimensions of 160.0mm x 96.5mm x 38.1mm. The power supply is capable of withstanding input surges up to 300Vac for up to five seconds, making it suitable for unstable input voltage conditions.
Key specifications include line regulation of 50mV, load regulation of 25mV, and a typical ripple noise of 80mV. It is approved by CE for commercial ITE applications. The series offers a five-year warranty, contributing to a lower cost of ownership.
The LS100-5 has a nominal output voltage of 5V.
The maximum load current for the LS100-5 is 16A.
The LS100-5 operates in a temperature range of -25°C to 70°C with derating.
The LS100-5 is a chassis mount power supply.
The LS100-5 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the LS100-5 is 1 Unlimited.
The LS100-5 is REACH Unaffected.
