| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage |

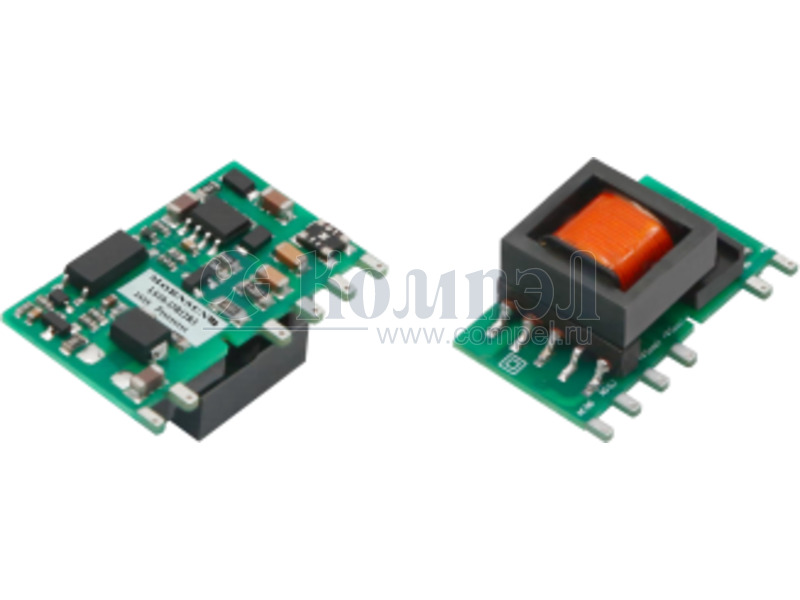

The Mornsun LS10-13B24R3 is a 10W AC/DC converter designed for various applications. It offers a compact open frame, through-hole mounting package and boasts an ultra-wide input voltage range of 85-305VAC and 100-430VDC.
Key electrical specifications include a nominal output voltage of 24V and an output current of 420mA, delivering a total output power of 10W. The converter achieves an efficiency of 83% at 230VAC. It is designed with protections for output short circuit, over-current, and over-voltage.
This series operates within a wide ambient temperature range of -40°C to +85°C, with derating. The compact dimensions of 32.0mm x 15.1mm x 17.2mm make it suitable for space-constrained designs. It is suitable for applications such as household appliances and ITE (Commercial) equipment.
The nominal output voltage is 24V.
The output current is 420mA.
It accepts an input voltage range of 85-305VAC and 100-430VDC.
The operating ambient temperature range is -40°C to +85°C.
It is provided in a 6-SIP Module package.
It is designed for through-hole mounting.
The efficiency is 83% at 230VAC.
