| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

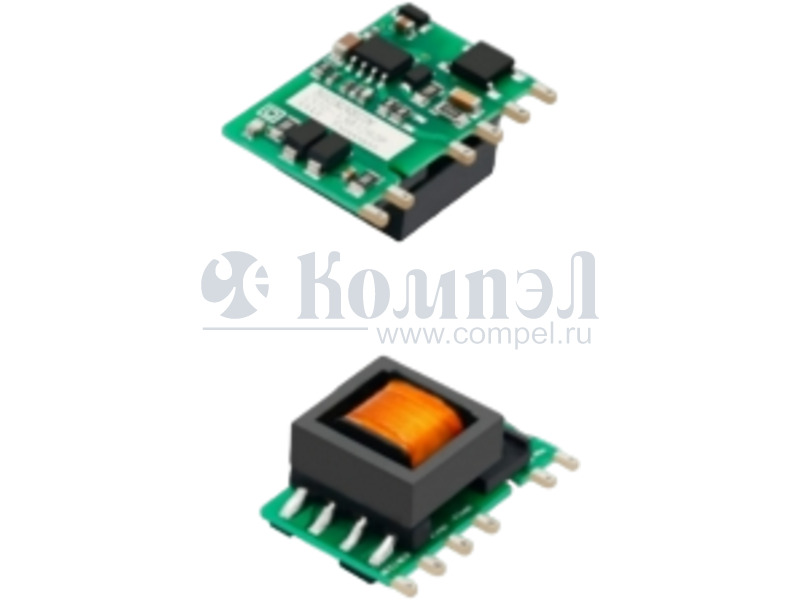

The Mornsun LS10-13B09R3P is a 10W AC/DC converter designed for various applications, including household appliances and ITE commercial use. It boasts an ultra-wide input voltage range, accepting both AC (85-305VAC) and DC (90-430VDC) inputs.
This converter offers a nominal output of 9V with a current capability of 1.1A, achieving an efficiency of 80%. It is designed to meet standards such as IEC/EN61558 and IEC/EN62368. The operating ambient temperature range is broad, spanning from -40°C to +85°C, with derating applied at higher temperatures.
Key features include protection against short circuit, over-current, and over-voltage conditions. The device is housed in a compact 6-SIP module and utilizes through-hole mounting. Its low no-load power consumption, as low as 0.1W, contributes to its green power credentials. The dimensions are 28.8mm in length, 14.1mm in width, and 17.2mm in height.
85-305 VAC and 90-430 VDC.
6-SIP Module, Through Hole mounting.
-40°C to 85°C with derating.
9V at 1.1A.
80% typical.
47-63 Hz.
Yes, output short circuit, over-current, and over-voltage protection.
