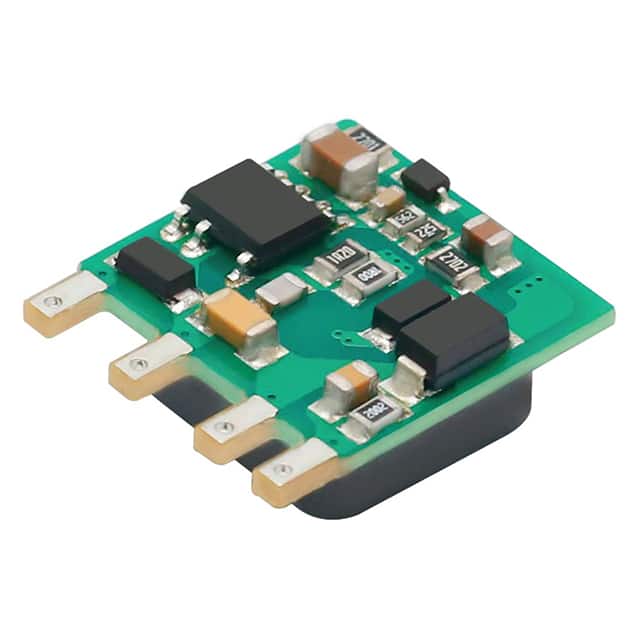

The LS05-K3B18SS is an AC/DC on-board converter module from Morning Star Industrial, designed for reliable power conversion in various applications. This module delivers a consistent 5W of output power with a regulated 18VDC output voltage, drawing power from a wide input range of 85-305 VAC or 70-430 VDC.
Key electrical specifications include an output current of 280mA and an efficiency rating of 78%. The module also features 4000VAC isolation voltage for enhanced safety and reliability in demanding environments. It operates within a broad temperature range of -40°C to +80°C, making it suitable for harsh industrial conditions.
Designed for through-hole mounting, the LS05-K3B18SS comes in a 4-SIP module package. Its compact dimensions (16.1mm x 9.5mm x 18.2mm) facilitate integration into space-constrained designs. The module meets IEC/EN62368 standards, ensuring compliance with international safety regulations.
Applications for this converter include industrial automation, control systems, CNC machines, building automation, HVAC systems, telecom infrastructure, and power grid management.
The input voltage range is 85-305 VAC or 70-430 VDC.
The output voltage is 18 VDC and the output current is 280mA.
The power rating is 5W.
The operating temperature range is -40°C to +80°C.
It uses a 4-SIP through-hole module.
The isolation voltage is 4000VAC.
It complies with IEC/EN62368.
