| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Frequency | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

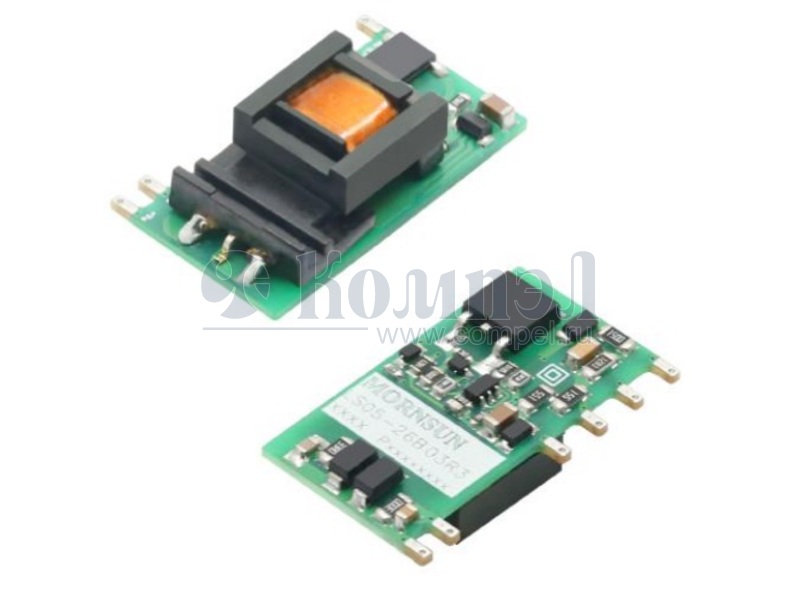

The Mornsun LS05-26B15R3 is a highly efficient, green power AC/DC converter designed for various applications. It offers a wide input voltage range, accepting either AC or DC input, making it versatile for different power sources.
Key electrical specifications include a 5W output power, a nominal output voltage of 15V with a current rating of 340mA, and an efficiency of 78% at 230VAC. The converter boasts a high I/O isolation test voltage of up to 4000VAC.
Designed for flexibility, this AC/DC converter operates within an ambient temperature range of -40°C to +85°C. It features output short circuit and over-current protection. The module is suitable for industrial control, electric power, and instrumentation applications where dimensional constraints are important.
This converter is housed in a 6-SIP module and utilizes Through Hole mounting. Its compact size (33.5mm x 13.0mm x 17.2mm) facilitates easy integration into various designs.
The input voltage range is 90 - 528 VAC and 100 - 745 VDC.
The output power is 5.1 W.
The output voltage is 15V and the output current is 340mA.
The operating temperature range is -40°C to 85°C.
The high I/O isolation test voltage is up to 4000 VAC.
The dimensions are 33.5mm in length, 13.0mm in width, and 17.2mm in height.
The efficiency is 78% at 230VAC.
