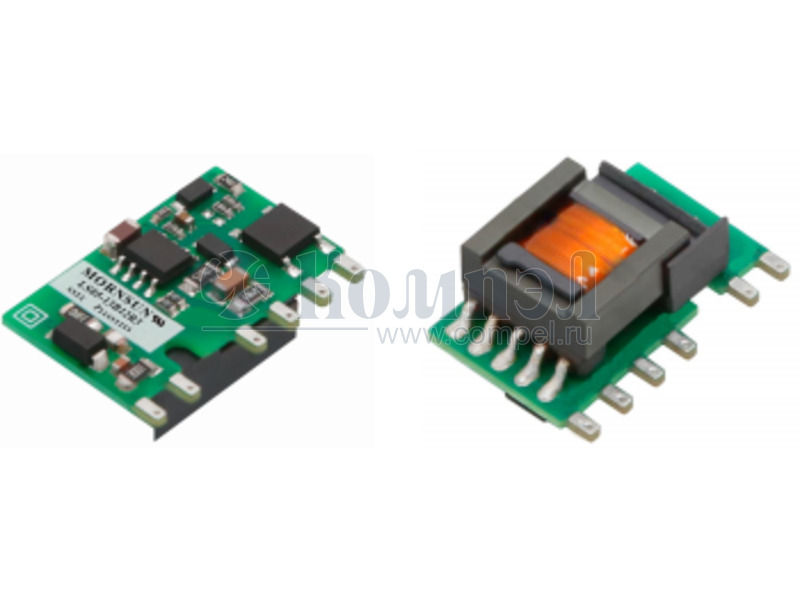

The Mornsun LS05-13B09R3 is a 5W AC/DC converter from the LS05_R3 series. It features an ultra-wide input voltage range of 85-305VAC and 70-430VDC, accepting either AC or DC input.
This converter provides a single 9V output at 560mA, with a nominal efficiency of 77% at 230VAC. It operates within an ambient temperature range of -40°C to +85°C, with derating. The compact size and high power density make it suitable for various applications.
Designed for through-hole mounting, the LS05-13B09R3 comes in a 6-SIP module package. It is suitable for applications such as household appliances and ITE (Commercial) equipment. Safety approvals include CB, CE, and cURus.
The series is designed to meet IEC/EN/UL62368, IEC/EN61558, and IEC/EN60335 standards. It offers output short circuit and over-current protection.
The input voltage range is 85-305 VAC and 70-430 VDC.
The package is 6-SIP Module with through-hole mounting.
The operating temperature range is -40°C to 85°C with derating.
The output power is 5W.
The output current is 560mA at 9V.
The dimensions are 26.4mm x 11.0mm x 12.6mm.
The typical efficiency is 77%.
