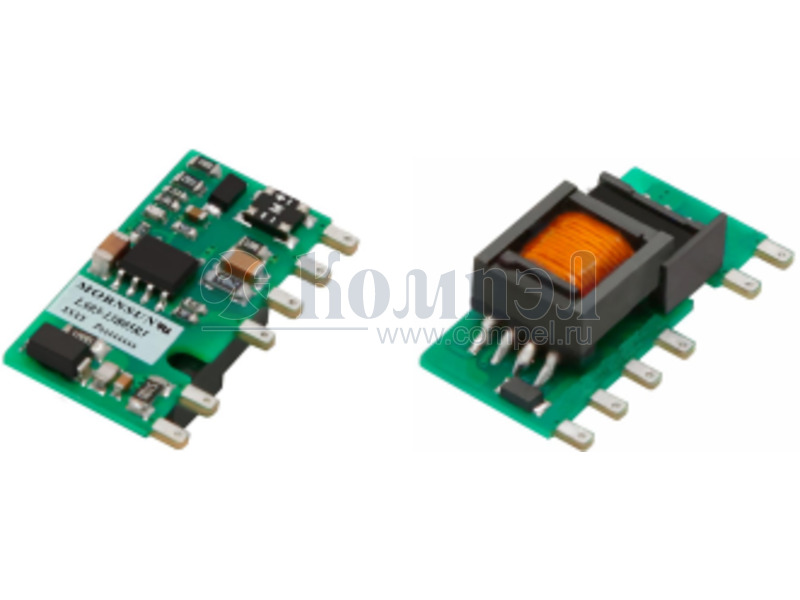

The Morning Star Industrial LS03-13B15R3 is a 3W AC/DC converter designed for various applications. It features an ultra-wide input voltage range, accepting both AC (85-305VAC) and DC (70-430VDC) inputs.
Key electrical specifications include a nominal output voltage of 15V and an output current of 200mA, delivering a total output power of 3W. The converter boasts an efficiency of 78% and operates within an ambient temperature range of -40°C to 85°C. It also features protections against short circuit and over-current.
This AC/DC converter is housed in a 6-SIP module package and is designed for through-hole mounting. Its compact size and high power density make it suitable for applications requiring flexible layout and green power solutions.
Compliance includes RoHS3, MSL 1, and REACH Unaffected. The device is approved by CB, CE, and cURus agencies, indicating adherence to safety standards.
The input voltage range is 85 to 305 VAC and 70 to 430 VDC.
The output voltage is 15V and the output current is 200mA.
The power rating is 3W.
The efficiency is typically 78%.
The operating temperature range is -40°C to 85°C.
It comes in a 6-SIP module package.
It is designed for through-hole mounting.
