| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,742 pcs
|
3742 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Forward Current | |
| Height | |
| Height (Max) | |
| Length | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Luminous Intensity | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature (Minimum/Maximum) | |
| Peak Wavelength | |
| Supplier Device Package | |
| Tape & Reel | |
| Unit Weight | |
| Viewing Angle | |
| Voltage | |
| Wavelength | |
| Width |

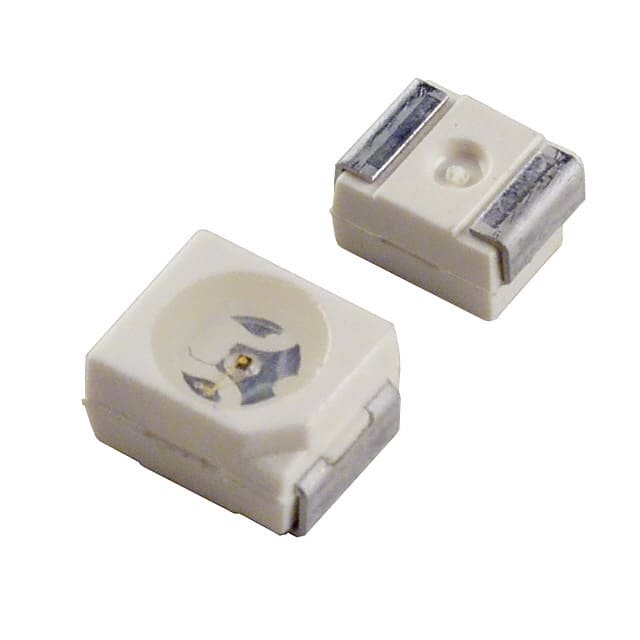

This OSRAM Opto Semiconductors LS T67K-J1L2-1-Z is a standard surface-mount (SMD) LED designed for indication purposes. It emits a super red light with a peak wavelength of 643nm and a typical wavelength of 630nm. The luminous intensity is rated at 18mcd, with a typical forward current of 2mA and a forward voltage of 1.8V.
The LED features a colorless, non-diffused lens with a round flat top shape and a diameter of 2.40mm. It offers a wide viewing angle of 120 degrees. The component is housed in a PLCC-2 package, measuring 3.2mm in length and 2.8mm in width, with a maximum height of 2.1mm.
Designed for surface mounting, this LED operates within a temperature range of -40°C to +100°C. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward current for the LS T67K-J1L2-1-Z LED is 2mA.
The luminous intensity of the LS T67K-J1L2-1-Z LED is 18mcd.
The viewing angle of the LS T67K-J1L2-1-Z LED is 120 degrees.
The operating temperature range for the LS T67K-J1L2-1-Z LED is -40°C to +100°C.
The LS T67K-J1L2-1-Z LED is supplied in a PLCC-2 package.
