| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

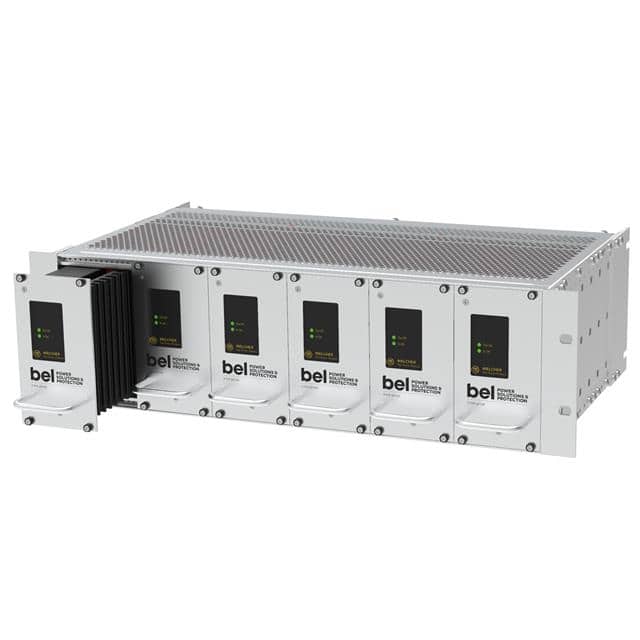

The Bel Power Solutions LRSA10-24-900 is a robust AC-DC subrack system designed for industrial and railway applications. This enclosed unit provides 240W of power with a nominal output of 24VDC and 10A current.
Key features include a wide input voltage range of 90 to 264 VAC, ensuring compatibility across various power grids, and a typical efficiency of 92%. The system operates reliably in harsh environments with an extended operating temperature range of -40°C to 71°C.
Designed for rack mounting, the LRSA10-24-900 incorporates features such as hot-swappable capability, load sharing, and remote on/off functionality. It also boasts enhanced voltage isolation of 3000 VAC and compliance with standards like IEC/EN 61000-3-2 for harmonics and UL/CSA 62368-1 for safety.
This subrack system is suitable for applications requiring a rugged and reliable power solution, including ITE (Commercial) and railway infrastructure, adhering to standards such as EN 50155 and EN 50121-4.
The input voltage range is 90 to 264 VAC at 50 to 60 Hz.
It provides a nominal 24 VDC output at up to 10 A.
The operating temperature range is -40°C to 71°C.
It is an enclosed rack-mount unit.
It is certified to IEC 62368-1.
Yes, it complies with IEC/EN 61000-3-2 harmonics standards.
Typical efficiency is 92% and power factor is greater than 0.93.
