| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package Quantity | |
| Power (Watts) | |
| Rated Current | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

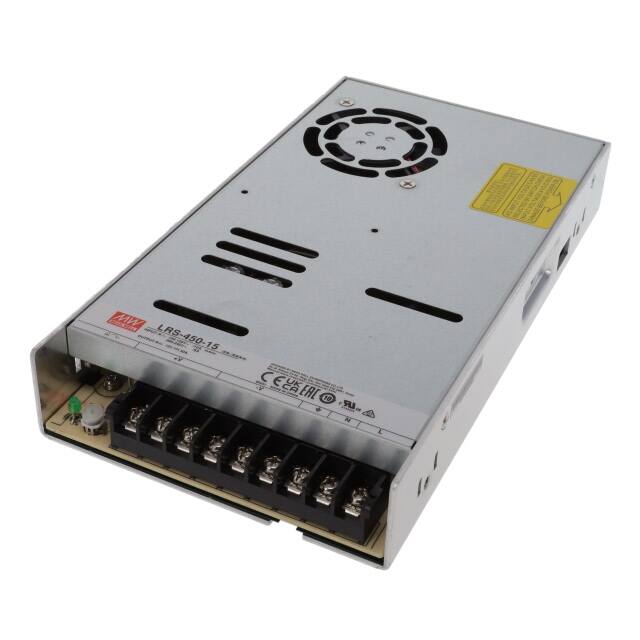

The Mean Well USA LRS-450-15 is a 450W single-output enclosed AC DC power supply designed for industrial applications. It offers a 15V output voltage at a rated current of 30A.
Key electrical specifications include a high efficiency of 90% and a wide input voltage range of 90-264VAC, selectable by switch. The unit provides over-load and over-voltage protection, along with a withstand voltage of 3.75KVAC.
Designed for versatility, the LRS-450-15 operates in ambient temperatures from -20°C to 70°C with derating. Its compact dimensions of 255.0mm x 124.0mm x 35.0mm make it suitable for chassis mounting. The power supply meets international safety regulations including 62368-1.
The LRS-450-15 has a nominal output voltage of 15V.
The rated power of the LRS-450-15 is 450W.
The LRS-450-15 has a rated current of 30A.
The LRS-450-15 has a typical efficiency of 90%.
The LRS-450-15 operates in a temperature range of -20°C to 70°C.
The dimensions of the LRS-450-15 are 255.0mm x 124.0mm x 35.0mm.
The LRS-450-15 complies with standard 62368-1 and is approved by CB, CE, cURus, EAC, and UKCA agencies.
