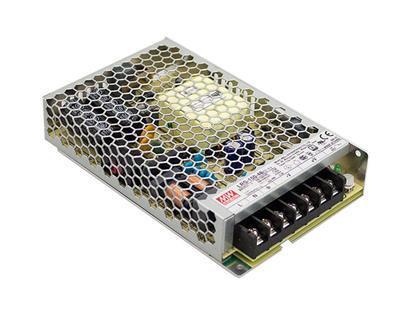

The Mean Well USA LRS-150-15 is a 150W AC/DC converter designed for various applications, including household appliances and ITE commercial use. This enclosed unit features a chassis mount for easy integration into systems.
Key electrical specifications include an output current of 10A and an efficiency rating of 88.5%. The operating temperature range is -30°C to 70°C, with derating applied. The dimensions are 159.0mm in length, 97.0mm in width, and 30.0mm in height.
This converter holds several approval agency certifications, including CB, CCC, CE, cURus, and TUV, ensuring compliance with various international standards. It is designed with adjustable output and a single output channel.
The LRS-150-15 has a power output of 150W.
The output current is 10 A.
The operating temperature range is -30°C to 70°C, with derating.
It uses chassis mount.
The dimensions are 159.0mm x 97.0mm x 30.0mm.
It is approved by CB, CCC, CE, cURus, and TUV.
