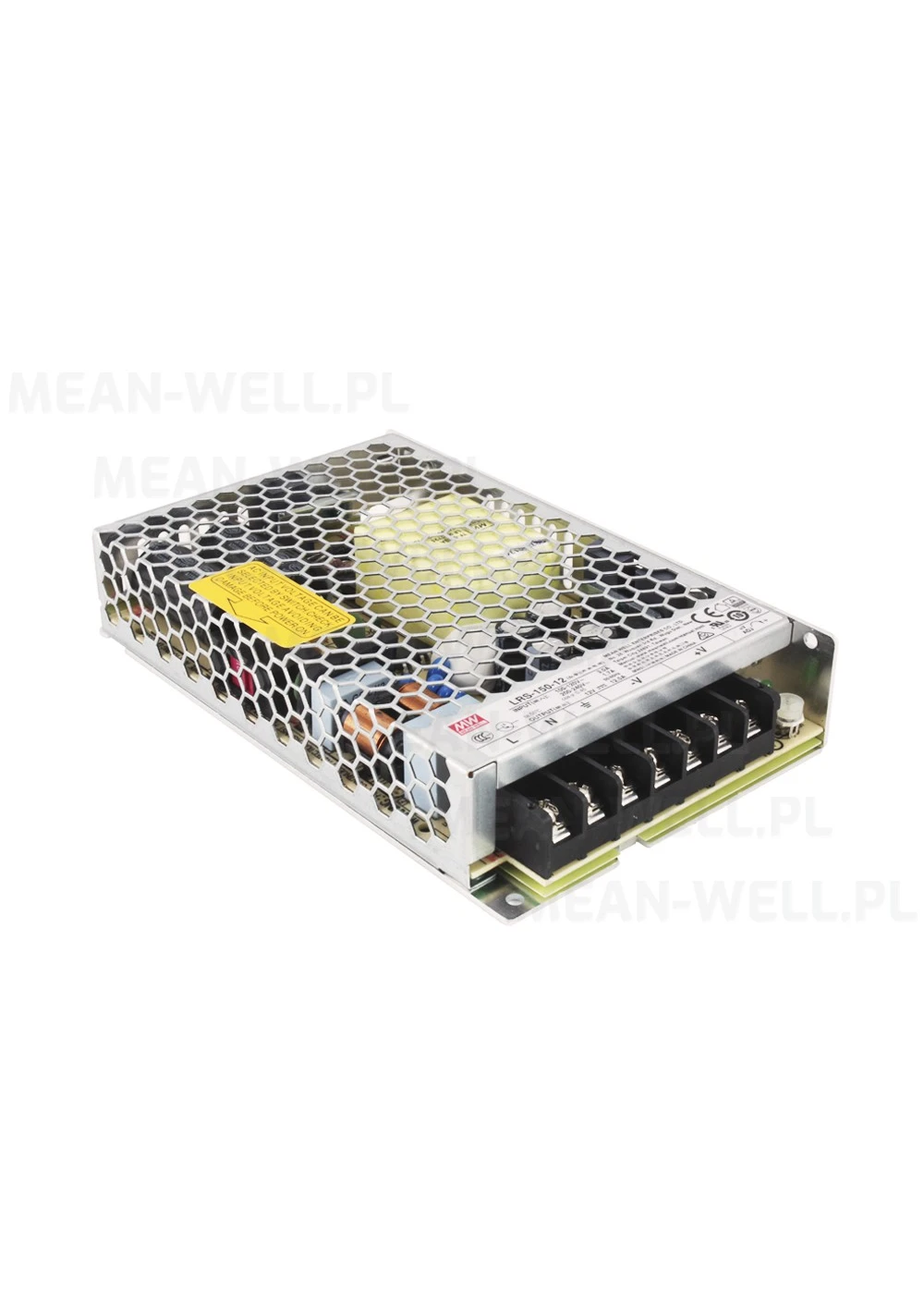

The Mean Well LRS-150-12 is a 150W single-output enclosed AC/DC power supply designed for various industrial applications. It features a low-profile design and a wide input voltage range, selectable between 115VAC and 230VAC.
This power supply provides a nominal 12V output at a rated current of 12.5A, delivering up to 150W of power. It includes protections against short circuit, overload, overvoltage, and overtemperature, ensuring reliable operation. The unit is cooled by free air convection and can operate in ambient temperatures from -30°C to 70°C with derating.
Key electrical specifications include a typical efficiency of 87.5% and a low no-load power consumption of less than 0.5W. It also withstands a 300VAC surge input for 5 seconds. The LRS-150-12 is compliant with international safety regulations such as CB, CCC, CE, cURus, and TUV.
With its robust design and versatile features, the LRS-150-12 is suitable for applications including household appliances, industrial automation machinery, industrial control systems, and electronic instruments.
85-132VAC / 170-264VAC selectable by switch.
12V DC at 12.5A, 150W.
-30°C to 70°C with derating.
Enclosed chassis mount.
Overload, over voltage, over temperature, and short circuit protection.
87.5% typical.
159.0mm x 97.0mm x 30.0mm.
