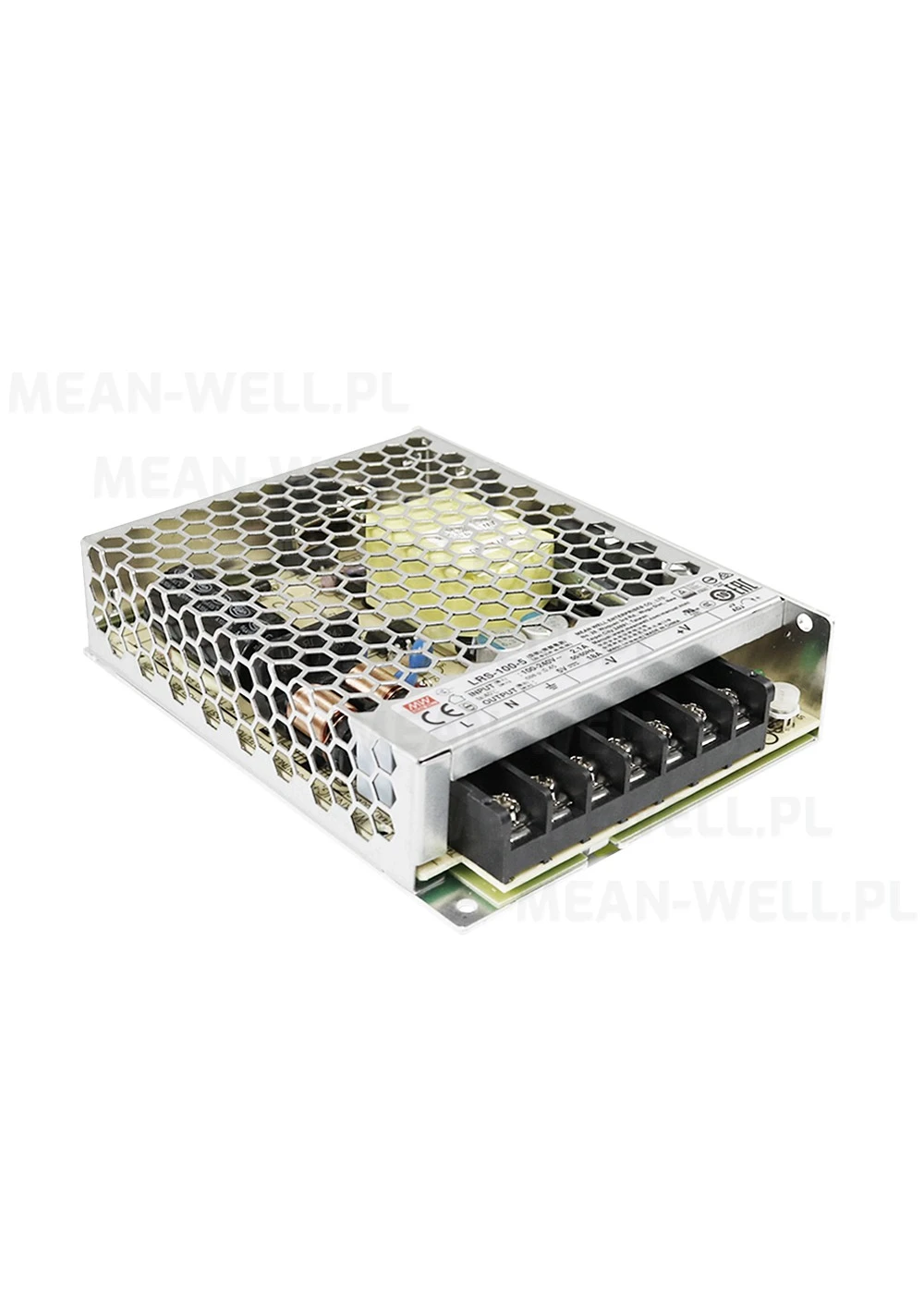

The Mean Well LRS-100-5 is a versatile enclosed AC/DC power supply designed for reliability and efficiency. It delivers a 5V output voltage with a maximum power of 90W and a current of 18A. This unit operates with a wide input voltage range of 85-264 VAC, supporting universal input capabilities.
Key features include adjustable output and universal input, enhancing its flexibility for different system requirements. The LRS-100-5 is built for robust performance, operating within a temperature range of -30°C to +70°C with derating. Its efficiency is rated at 86%.
Designed for chassis mounting, this power supply is suitable for applications in industrial automation, LED lighting, telecommunications, IT, household appliances, and ITE (Commercial) environments. It has received multiple safety certifications, including CB, CCC, CE, cURus, and TUV, ensuring compliance and safety.
The dimensions of the LRS-100-5 are 129.0mm in length, 97.0mm in width, and 30.0mm in height. It offers a single output and provides 4 kV of isolation voltage.
-30°C to 70°C with derating.
85-264 VAC.
86%.
4 kV.
CB, CCC, CE, cURus, TUV.
Chassis Mount.
90W.
