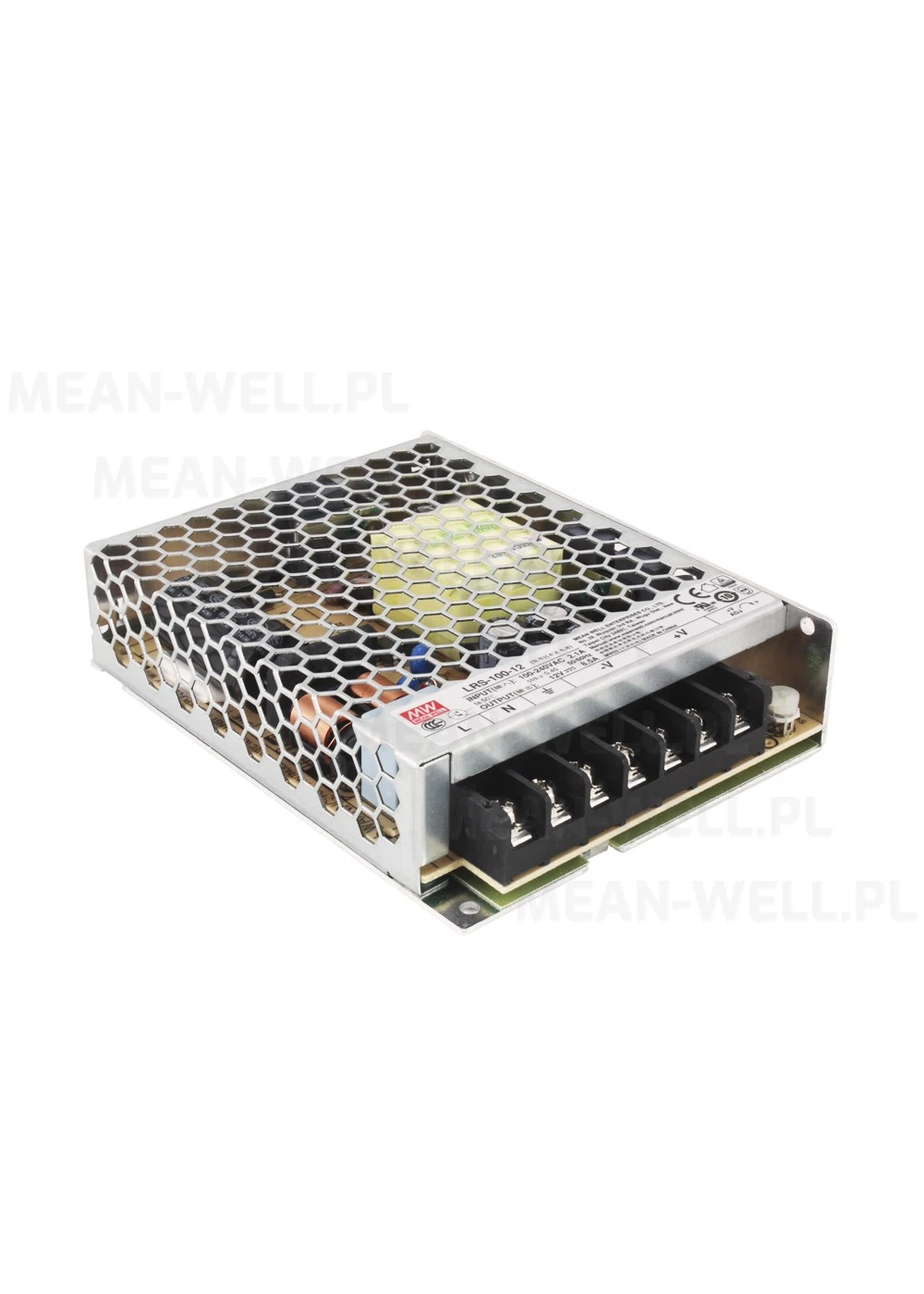

The Mean Well USA LRS-100-12 is an enclosed AC/DC converter designed for various applications. It provides a power output of 102W with a current rating of 8.5A and a single output.
Key electrical specifications include an efficiency of 88% and an isolation voltage of 4 kV. The operating temperature range is -30°C to 70°C, with derating applied. This model is suitable for household appliances and ITE (Commercial) applications.
Mechanically, the LRS-100-12 features a chassis mount type and has dimensions of 129.0mm in length, 97.0mm in width, and 30.0mm in height. It is compliant with various agency approvals including CB, CCC, CE, cURus, and TUV.
Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status. The unit offers adjustable output and universal input features.
The operating temperature range is -30°C to 70°C, with derating.
The power output is 102W.
The current rating is 8.5A.
It uses chassis mount.
The dimensions are 129.0mm x 97.0mm x 30.0mm.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
