| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage | |
| Width |

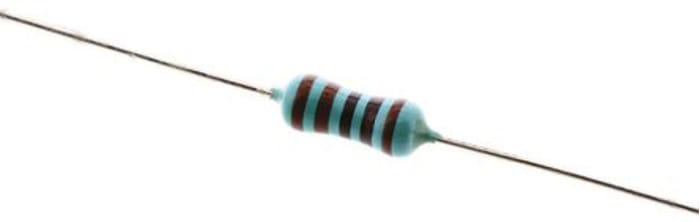

This TE Connectivity LR1F1K0 is a 1 kΩ metal film resistor designed for general purpose and precision applications. It offers a 0.6W power rating and a tight tolerance of ±1%. The resistor utilizes a superior quality metal film with a temperature coefficient down to 50 ppm/°C, ensuring excellent stability under load and severe environmental conditions.
The LR1F series resistors are housed in an axial package with dimensions of 6.2mm in length and 2.3mm in width. They are suitable for both general purpose applications as well as those precision applications in industry where low resistance and small sizes are required. The resistive element comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element.
Key electrical characteristics include a low noise current and low voltage coefficients. The component is rated for a maximum voltage of 350V and operates within a temperature range of -55°C to 155°C. The LR1F series is compatible with automatic insertion equipment as well as cutting and bending machines.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1 kΩ.
The power rating is 0.6W.
The tolerance is ±1%.
The temperature coefficient is ±50 ppm/°C.
The operating temperature range is -55°C to 155°C.
The LR1F1K0 resistor uses an axial package.
