| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,693 pcs
|
4693 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Factory Pack Quantity | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

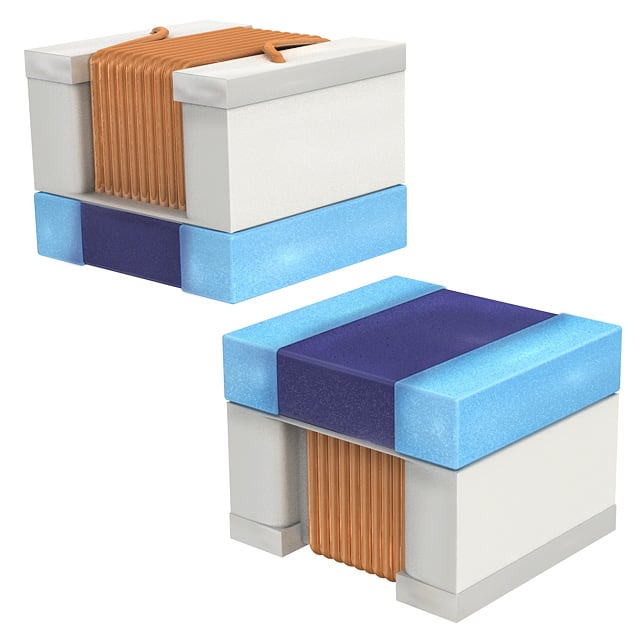

The Murata LQW2BAS8N2J00L is a wirewound fixed inductor designed for various electronic applications. It offers a nominal inductance of 8.2 nH with a tolerance of ±5% and a maximum DC resistance of 120mΩ. The component is rated for a current of 600mA and has a Q factor of 50 at 1GHz.
This inductor operates within a temperature range of -55°C to 125°C and has a self-resonant frequency of 4.4GHz. It is unshielded and features an air core. The device is housed in an 0805 (2015 Metric) package, measuring 2.09mm in length, 1.53mm in width, and 1.52mm in height. It is designed for surface mounting.
The LQW2BAS8N2J00L is suitable for applications in power equipment, industrial equipment, medical equipment, and consumer electronics, where its inductance and current handling capabilities are beneficial. Its compact size and surface mount design make it ideal for densely populated circuit boards.
The inductance of the LQW2BAS8N2J00L is 8.2 nH.
The current rating for the LQW2BAS8N2J00L is 600 mA.
The maximum DC resistance is 120mΩ.
The operating temperature range is -55°C to 125°C.
The LQW2BAS8N2J00L is available in the 0805 (2015 Metric) package size.
