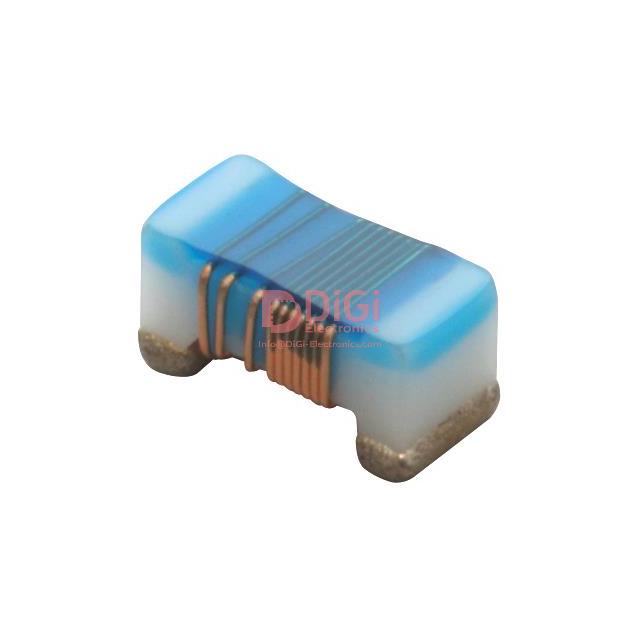

LQW18ASR27G0ZD The Murata LQW18ASR27G0ZD is a wirewound fixed inductor with a 270nH inductance and a 170mA current rating. It features a surface mount 0603 package.
Mfr Part #:

LQW18ASR27G0ZD

Available from 1 distributors
Mfr Name: Murata
Murata
The Murata LQW18ASR27G0ZD is a wirewound fixed inductor with a 270nH inductance and a 170mA current rating. It features a surface mount 0603 package.
✓ Total Stock: 98 pcs
$ Price Range: $0.20

LQW18ASR27G0ZD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Akira Global ✓
Non-Authorised Inventory information
98 pcs
On Request
98 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LQW18ASR27G0ZD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Q @ Freq
Ratings
Shielding
Supplier Device Package
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

LQW18ASR27G0ZD Description

Short technical summary and product information.

This Murata LQW18ASR27G0ZD is a wirewound fixed inductor designed for surface mount applications. It offers an inductance value of 270 nH with a tolerance of ±2% and a current rating of 170 mA.



The inductor has a DC resistance of 2.3 Ohm maximum and a Q factor of 24 at 100MHz. Its self-resonant frequency is 900MHz, making it suitable for various electronic circuits.



The component operates within a temperature range of -55°C to 125°C and is rated AEC-Q200. It is constructed with a non-magnetic material and features unshielded construction. The package size is 0603 (1608 Metric), with dimensions of 1.60mm in length, 0.80mm in width, and 1.00mm in height.



This inductor is suitable for applications requiring stable performance and reliability in automotive electronics, excluding power trains and safeties, as indicated by its AEC-Q200 rating.

LQW18ASR27G0ZD Quick Information

Product Type: Fixed Inductor
Series: LQW18
Canonical Name: Murata LQW18ASR27G0ZD Wirewound Inductor
Subcategory: Fixed Inductors

LQW18ASR27G0ZD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LQW18ASR27G0ZD Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

LQW18ASR27G0ZD Features

  • Wirewound construction with non-magnetic core.
  • 270nH inductance with ±2% tolerance.
  • 170mA rated current and 2.3 Ohm max DCR.
  • AEC-Q200 qualified for automotive use.
  • Compact 0603 (1608 Metric) surface mount package.

LQW18ASR27G0ZD Applications

  • Ideal for RF signal filtering.
  • Suitable for automotive electronics.
  • Used in general purpose circuits.
  • Compact design for space-constrained applications.

LQW18ASR27G0ZD FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the LQW18ASR27G0ZD?

The inductance of the LQW18ASR27G0ZD is 270 nH.

What is the current rating for this Murata inductor?

The current rating for the LQW18ASR27G0ZD is 170 mA.

What is the DC resistance (DCR) of the LQW18ASR27G0ZD?

The DC resistance (DCR) is a maximum of 2.3 Ohm.

What is the self-resonant frequency of this inductor?

The self-resonant frequency is 900MHz.

What package size is the LQW18ASR27G0ZD available in?

The LQW18ASR27G0ZD is available in the 0603 (1608 Metric) package size.
