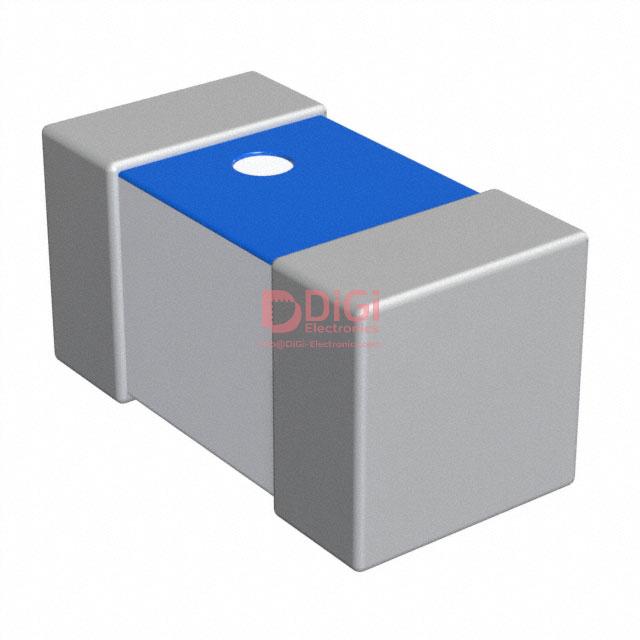

LQW18ANR22J00D The Murata LQW18ANR22J00D is a wirewound fixed inductor with a 220nH inductance and a 120mA current rating. It features a surface mountable 0603 package.
Mfr Part #:

LQW18ANR22J00D

Available from 1 distributors
Mfr Name: Murata
Murata
The Murata LQW18ANR22J00D is a wirewound fixed inductor with a 220nH inductance and a 120mA current rating. It features a surface mountable 0603 package.
✓ Total Stock: 833 pcs
$ Price Range: $0.20

LQW18ANR22J00D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
833 pcs
On Request
833 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LQW18ANR22J00D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Supplier Device Package
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

LQW18ANR22J00D Description

Short technical summary and product information.

The Murata LQW18ANR22J00D is a wirewound fixed inductor designed for surface mount applications. It offers an inductance value of 220nH with a tolerance of ±5% and a rated current of 120mA.



This inductor operates within a temperature range of -55°C to 125°C and has a DC resistance (DCR) of 2.5 Ohms maximum. It is unshielded and constructed with non-magnetic material. The component measures 1.60mm in length, 0.80mm in width, and 1.00mm in height, fitting into a 0603 (1608 Metric) package.



With a Q factor of 25 at 100MHz and a self-resonant frequency of 1.2GHz, the LQW18ANR22J00D is suitable for various electronic circuits requiring stable inductance. Its RoHS3 compliance and MSL 1 rating indicate suitability for a wide range of manufacturing processes.

LQW18ANR22J00D Quick Information

Product Type: Fixed Inductor
Series: LQW18AN
Canonical Name: Murata LQW18ANR22J00D Wirewound Fixed Inductor
Subcategory: Wirewound

LQW18ANR22J00D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LQW18ANR22J00D Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

LQW18ANR22J00D Features

  • Wirewound fixed inductor with 220nH inductance.
  • Rated for 120mA current with 2.5 Ohm max DCR.
  • Unshielded, non-magnetic material construction.
  • Compact 0603 surface mount package.
  • Operates from -55°C to 125°C.

LQW18ANR22J00D Applications

  • Suitable for general purpose filtering.
  • Ideal for power supply circuits.
  • Used in signal conditioning applications.
  • Applicable in consumer electronics.
  • Designed for industrial equipment.

LQW18ANR22J00D FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the LQW18ANR22J00D?

The inductance of the LQW18ANR22J00D is 220 nH.

What is the current rating for the LQW18ANR22J00D?

The current rating for the LQW18ANR22J00D is 120 mA.

What is the DC resistance (DCR) of this inductor?

The DC resistance (DCR) of the LQW18ANR22J00D is a maximum of 2.5 Ohms.

What is the self-resonant frequency of the LQW18ANR22J00D?

The self-resonant frequency of the LQW18ANR22J00D is 1.2 GHz.

What package type is the LQW18ANR22J00D available in?

The LQW18ANR22J00D is available in a 0603 (1608 Metric) package.
