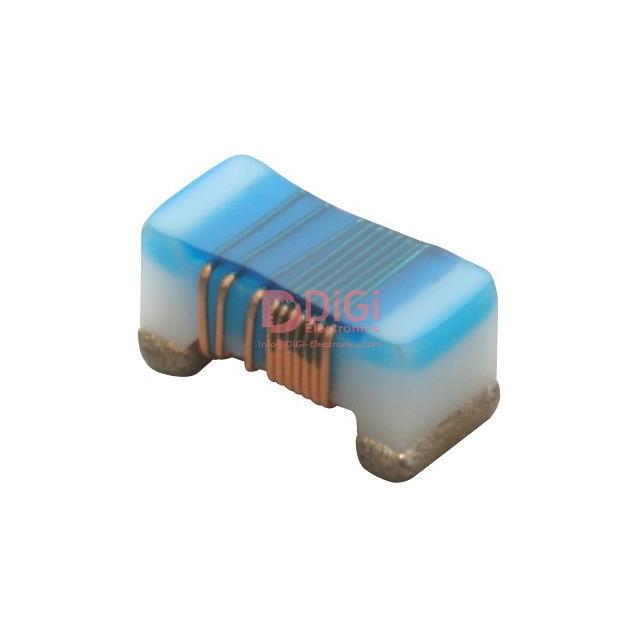

LQW18AN4N7D00D The Murata LQW18AN4N7D00D is a wirewound fixed inductor with a 4.7nH inductance and 850mA current rating. It features a surface mount 0603 package.
Mfr Part #:

LQW18AN4N7D00D

Available from 5 distributors
Mfr Name: Murata
Murata
The Murata LQW18AN4N7D00D is a wirewound fixed inductor with a 4.7nH inductance and 850mA current rating. It features a surface mount 0603 package.
✓ Total Stock: 20,365 pcs
$ Price Range: $0.20

LQW18AN4N7D00D Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LQW18AN4N7D00D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Supplier Device Package
Tolerance
Type
Width
View Similar Products (0)

LQW18AN4N7D00D Description

Short technical summary and product information.

The Murata LQW18AN4N7D00D is a wirewound, unshielded fixed inductor designed for consumer and industrial equipment. It offers an inductance value of 4.7nH with a tolerance of ±0.5nH.



Key electrical specifications include a current rating of 850mA and a maximum DC resistance of 59mOhm. The inductor has a Q factor of 35 at 250MHz and a self-resonant frequency of 6GHz.



This component operates within a temperature range of -55°C to 125°C. It is housed in a compact 0603 (1608 Metric) surface mount package, measuring 1.60mm in length and 0.80mm in width.



The LQW18AN4N7D00D is suitable for applications in power equipment, industrial equipment, medical equipment, and consumer electronics where reliable inductance is required.

LQW18AN4N7D00D Quick Information

Product Type: Fixed Inductor
Series: LQW18AN
Canonical Name: Murata LQW18AN4N7D00D Wirewound Inductor
Subcategory: Fixed Inductors

LQW18AN4N7D00D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LQW18AN4N7D00D Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

LQW18AN4N7D00D Features

  • Wirewound unshielded fixed inductor.
  • 4.7nH inductance with ±0.5nH tolerance.
  • 850mA current rating.
  • 0603 (1608 Metric) surface mount package.
  • Wide -55°C to 125°C operating temperature.

LQW18AN4N7D00D Applications

  • Suitable for power equipment applications.
  • Used in industrial equipment designs.
  • Applicable for consumer electronics.
  • Designed for medical equipment use.

LQW18AN4N7D00D FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the LQW18AN4N7D00D?

The inductance of the LQW18AN4N7D00D is 4.7 nH.

What is the current rating for this Murata inductor?

The current rating for the LQW18AN4N7D00D is 850 mA.

What is the DC resistance (DCR) of the LQW18AN4N7D00D?

The maximum DC resistance (DCR) for the LQW18AN4N7D00D is 59mOhm.

What is the operating temperature range for this component?

The operating temperature range is -55°C to 125°C.

What package size is the LQW18AN4N7D00D in?

The LQW18AN4N7D00D is in a 0603 (1608 Metric) package.
