| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

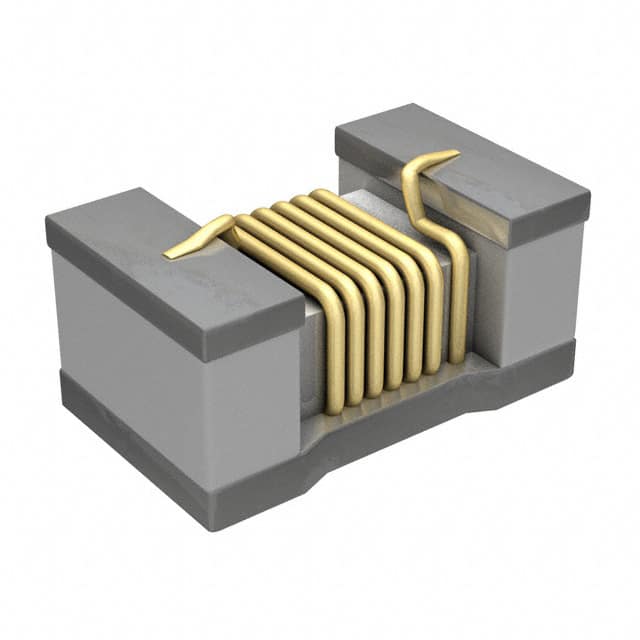

This Murata LQW15AN3N9D10D is a fixed chip inductor from the LQW15AN series, featuring a wirewound construction. It offers an inductance of 3.9nH with a tolerance of ±0.5nH, a rated current of 900mA, and a maximum DC resistance of 40mOhm. The inductor has a self-resonant frequency of 7GHz and operates within a temperature range of -55°C to 125°C.
Designed for surface mounting, this component comes in a compact 0402 (1005 Metric) package with dimensions of 1.00mm x 0.60mm. Its unshielded, non-magnetic design makes it suitable for various electronic applications where precise inductance is required. The RoHS3 compliant status indicates adherence to environmental regulations.
Applications include consumer electronics, power equipment, industrial equipment, and medical devices (GHTF Class A, B, and C, excluding implant/surgery/auto injector). Its robust specifications allow for reliable performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the LQW15AN3N9D10D is 3.9 nH.
The tolerance for the 3.9nH inductance is ±0.5nH.
The maximum DC resistance (DCR) for this inductor is 40mOhm.
The rated current for the LQW15AN3N9D10D is 900 mA.
The self-resonant frequency of this chip inductor is 7 GHz.
The LQW15AN3N9D10D has dimensions of 1.00mm x 0.60mm, corresponding to the 0402 (1005 Metric) package size.
The operating temperature range for this Murata inductor is -55°C to 125°C.
