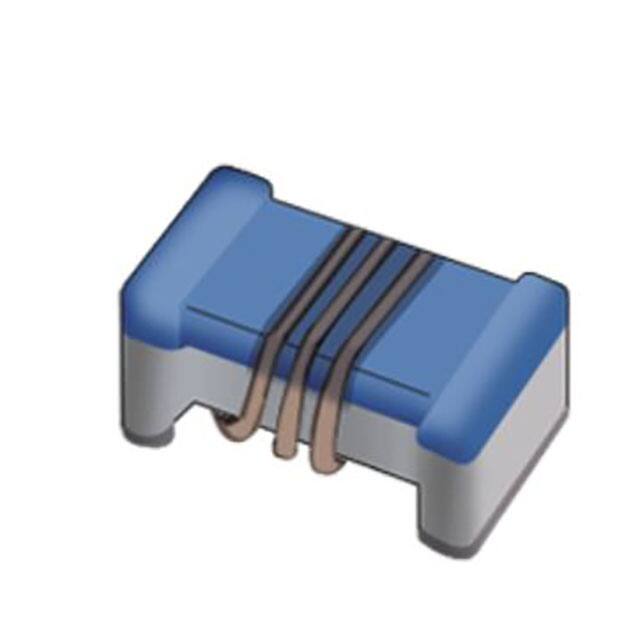

LQW15AN2N3G80D The Murata LQW15AN2N3G80D is a wirewound fixed inductor with 2.3nH inductance and a ±2% tolerance. It is designed for surface mount applications in a 0402 package.
Mfr Part #:

LQW15AN2N3G80D

Available from 1 distributors
Mfr Name: Murata
Murata
The Murata LQW15AN2N3G80D is a wirewound fixed inductor with 2.3nH inductance and a ±2% tolerance. It is designed for surface mount applications in a 0402 package.
✓ Total Stock: 5,000 pcs
$ Price Range: $0.20

LQW15AN2N3G80D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LQW15AN2N3G80D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Storage Temperature
Supplier Device Package
Tape & Reel
Termination Style
Tolerance
Type
Width
View Similar Products (0)

LQW15AN2N3G80D Description

Short technical summary and product information.

The Murata LQW15AN2N3G80D is a wirewound fixed inductor from the LQW15AN_80 series. It offers a nominal inductance of 2.3nH with a tight tolerance of ±2%. This unshielded inductor is suitable for surface mount applications and comes in a compact 0402 (1005 Metric) package.



Key electrical characteristics include a current rating of 2.53A and a maximum DC resistance of 22mOhm. It operates effectively within a temperature range of -55°C to 125°C and has a high self-resonant frequency of 15.5GHz, making it suitable for various RF applications. The non-magnetic material construction is also a notable feature.



This component is designed for use in consumer equipment such as home appliances and audio/visual devices, as well as industrial equipment like base stations and manufacturing machinery. Its specific applications include power equipment, industrial equipment, and certain medical equipment categories (GHTF Class A, B, and C, excluding implant/surgery/auto injector types).



The inductor measures 1.00mm in length, 0.60mm in width, and 0.60mm in height. It is supplied in cut tape packaging.

LQW15AN2N3G80D Quick Information

Product Type: Fixed Inductor
Series: LQW15AN_80
Canonical Name: Murata LQW15AN2N3G80D Wirewound Fixed Inductor
Subcategory: Wirewound

LQW15AN2N3G80D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LQW15AN2N3G80D Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

LQW15AN2N3G80D Features

  • Wirewound construction for reliable performance.
  • 2.3nH inductance with ±2% tolerance.
  • High current rating of 2.53A.
  • Compact 0402 (1005 Metric) package.
  • Suitable for consumer and industrial equipment.

LQW15AN2N3G80D Applications

  • Ideal for RF signal filtering.
  • Used in power supply circuits.
  • Suitable for communication equipment.
  • Applicable in industrial automation.
  • Designed for home appliance integration.

LQW15AN2N3G80D FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance value of the LQW15AN2N3G80D?

The inductance value is 2.3 nH.

What is the tolerance for the LQW15AN2N3G80D inductor?

The tolerance is ±2%.

What is the maximum DC current rating for this Murata inductor?

The maximum DC current rating is 2.53 A.

What is the operating temperature range for the LQW15AN2N3G80D?

The operating temperature range is -55°C to 125°C.

What package size is the LQW15AN2N3G80D available in?

It is available in the 0402 (1005 Metric) package size.

What type of construction does the LQW15AN2N3G80D feature?

It features a wirewound construction.
