| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60,000 pcs
$0.05
|
60000 pcs |
$0.05
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Core Material | |
| Current Rating | |
| DC Resistance | |
| Halogen Free | |
| Inductance | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Self Resonant Frequency | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type |

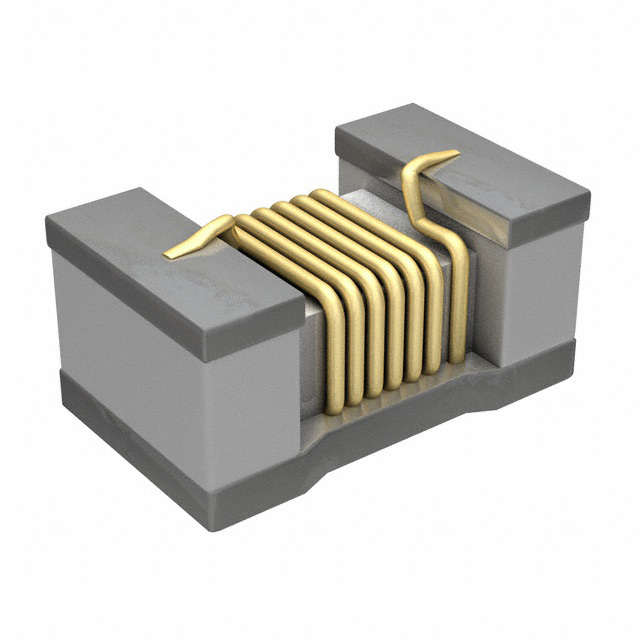

The Murata LQW15AN18NJ00D is a wirewound fixed inductor with a nominal inductance of 18nH, tested at 100 MHz. It features a maximum DC resistance of 270mOhm and a current rating of 370mA.
This inductor operates within a temperature range of -55°C to 125°C and has a self-resonant frequency of 4.5GHz. It is constructed with a non-magnetic core and is unshielded, offering a Q factor of 25 at 250MHz.
The LQW15AN18NJ00D is housed in a 0402 (1005 Metric) package, measuring 0.039" L x 0.024" W (1.00mm x 0.60mm) with a maximum seated height of 0.024" (0.60mm). It is designed for surface mounting.
This component is RoHS3 Compliant and has an MSL rating of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 18 nH, tested at 100 MHz.
The maximum current rating is 370 mA.
The maximum DC resistance is 270 mOhm.
The Q factor is 25, measured at 250 MHz.
The self-resonant frequency is 4.5 GHz.
The operating temperature range is -55°C to 125°C.
It is in a 0402 (1005 Metric) package.
