| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
161,406 pcs
|
161406 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 1517 | On Request | On Request | |
|
2,930 pcs
|
2930 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,538 pcs
|
1538 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Lead Spacing | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

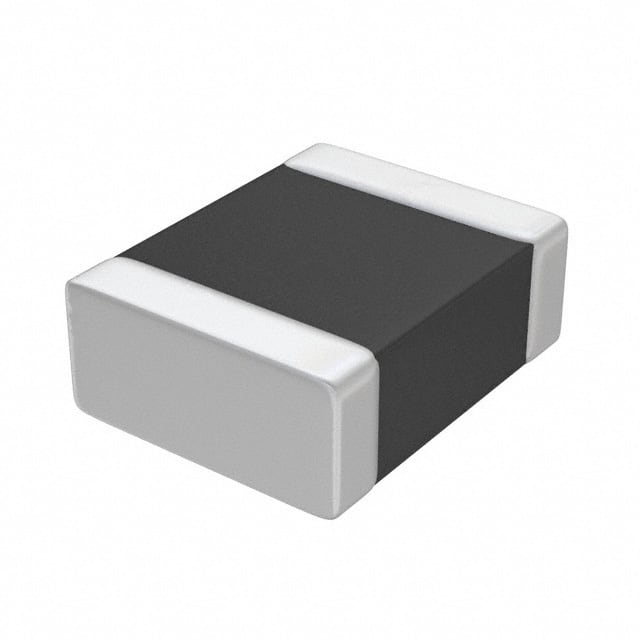

The Murata LQM2HPN1R0MG0L is a fixed inductor from the LQM2HPN_G0 series, designed for consumer and industrial equipment. This component features a multilayer ferrite construction with shielding, offering a nominal inductance of 1µH and a tolerance of ±20%.
Key electrical specifications include a maximum DC resistance of 69mΩ and a rated current of 1.6A. The inductor operates within a temperature range of -55°C to 125°C and has a self-resonant frequency of 60 MHz.
Designed for surface mounting, the LQM2HPN1R0MG0L comes in a compact 1008 (2520 Metric) package with dimensions of 2.5mm x 2.0mm and a height of 1.00mm. This makes it suitable for space-constrained applications in power equipment, industrial systems, and consumer electronics.
This inductor is suitable for applications such as renewable energy equipment, EV charging, base stations, manufacturing equipment, and home appliances, provided its function is not directly related to the protection of human life and property.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the LQM2HPN1R0MG0L is 1 µH.
The tolerance for the LQM2HPN1R0MG0L inductor is ±20%.
The maximum DC resistance (DCR) of the LQM2HPN1R0MG0L is 69mΩ.
The rated current for the LQM2HPN1R0MG0L is 1.6A at 85°C ambient temperature.
The operating temperature range for the LQM2HPN1R0MG0L is -55°C to 125°C.
The LQM2HPN1R0MG0L is available in the 1008 (2520 Metric) package size.
Yes, the LQM2HPN1R0MG0L is a shielded inductor.
