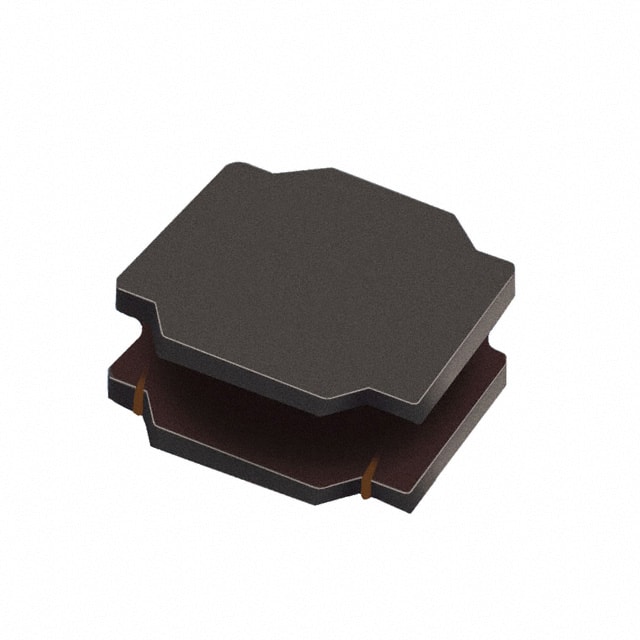

LQH88PN101M38L The Murata LQH88PN101M38L is a wirewound fixed inductor with a 100µH inductance and a 1A current rating. It features a surface mount package and shielded construction.
Mfr Part #:

LQH88PN101M38L

Available from 1 distributors
Mfr Name: Murata
Murata
The Murata LQH88PN101M38L is a wirewound fixed inductor with a 100µH inductance and a 1A current rating. It features a surface mount package and shielded construction.
✓ Total Stock: 250 pcs

LQH88PN101M38L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request ML0122471 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LQH88PN101M38L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
Current Saturation
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Supplier Device Package
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

LQH88PN101M38L Description

Short technical summary and product information.

The Murata LQH88PN101M38L is a wirewound fixed inductor designed for general electronic equipment. It offers a nominal inductance of 100µH with a tolerance of ±20% and a current rating of 1A. The DC resistance is a maximum of 265mOhm, and it has a self-resonant frequency of 4MHz.



This inductor is constructed with a shielded, wirewound type and is suitable for surface mounting. It operates within a temperature range of -40°C to 85°C. The dimensions are 8.00mm in length and width, with a height of 3.80mm.



Key electrical characteristics include a Q factor of 10 at 796kHz and a saturation current of 1A. The component is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.

LQH88PN101M38L Quick Information

Product Type: Fixed Inductor
Series: LQH88PN101M38L
Canonical Name: Murata LQH88PN101M38L Wirewound Inductor
Subcategory: Fixed Inductor

LQH88PN101M38L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LQH88PN101M38L Features

  • Wirewound shielded fixed inductor.
  • 100µH inductance with ±20% tolerance.
  • Rated for 1A current.
  • Surface mount package.
  • Operating temperature -40°C to 85°C.

LQH88PN101M38L Applications

  • Used in RF filtering circuits
  • Suitable for power supply filtering
  • Ideal for compact electronic devices
  • Applied in automotive and industrial electronics

LQH88PN101M38L FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the LQH88PN101M38L?

The inductance of the LQH88PN101M38L is 100 µH with a tolerance of ±20%.

What is the current rating for this Murata inductor?

The current rating for the LQH88PN101M38L is 1 A.

What is the DC Resistance (DCR) of the LQH88PN101M38L?

The DC Resistance (DCR) is a maximum of 265mOhm.

What is the self-resonant frequency of this inductor?

The self-resonant frequency is 4MHz.

What type of package is the LQH88PN101M38L in?

The LQH88PN101M38L is a surface mount inductor in a 3131 (8080 Metric) package.
