| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,950 pcs
|
2950 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request | |
|
214 pcs
|
214 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Frequency for Inductance | |
| Tolerance | |
| Type | |
| Width |

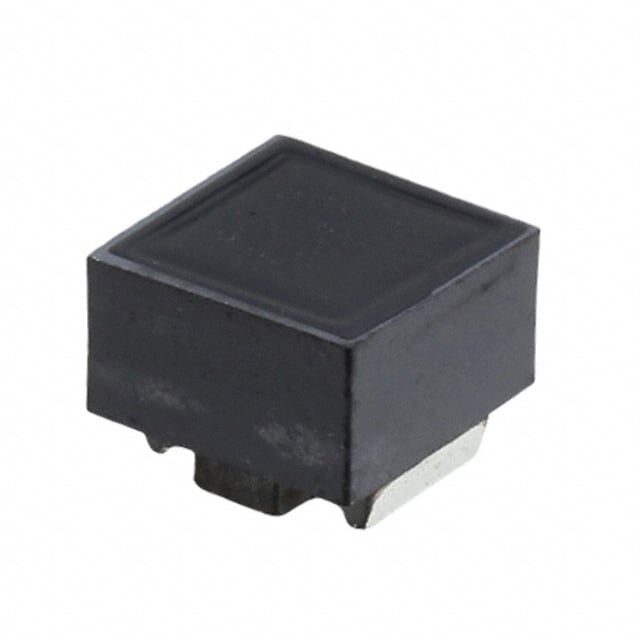

This Murata LQH66SNR68M03L is a fixed inductor featuring a drum core and wirewound construction, designed for surface mount applications. It provides an inductance value of 680 nH with a tolerance of ±20% and can handle a maximum current rating of 5.3 A. The DC resistance is a maximum of 14 mOhm, contributing to efficient power handling.
With a shielded design and ferrite core material, this inductor is suitable for applications requiring good EMI performance. It operates within a temperature range of -40°C to 80°C and has a self-resonant frequency of 180 MHz, making it suitable for various electronic circuits. The component is housed in a 2525 (6363 Metric) package with dimensions of 6.30mm x 6.30mm x 5.00mm.
Applications include power supply filtering, DC-DC switch mode power supplies, LED lighting circuits, telecommunication equipment, consumer electronics, and industrial automation. Its surface mount capability ensures compatibility with automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 680 nH.
The maximum current rating is 5.3 A.
The maximum DC resistance is 14 mOhm.
It operates between -40°C and 80°C.
It is in a 2525 (6363 Metric) package.
Yes, it is a shielded inductor.
