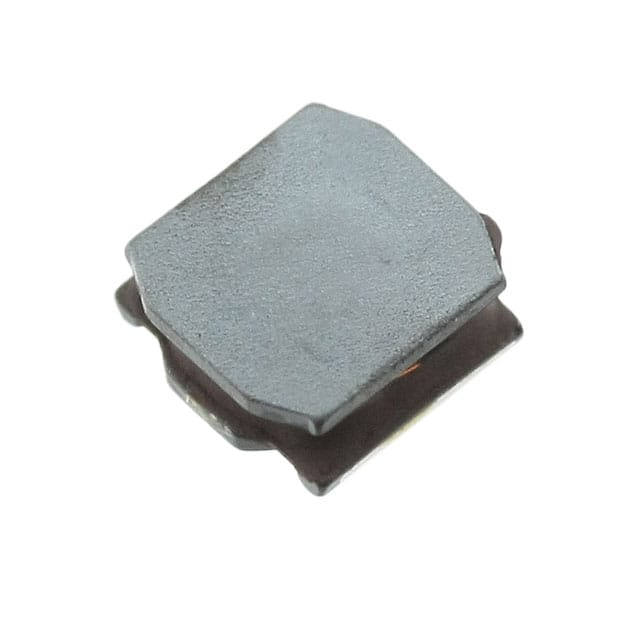

LQH44PN1R0NP0L The Murata LQH44PN1R0NP0L is a shielded, wirewound fixed inductor with a 1 µH inductance value. It features a surface mount design and a ferrite core.
Mfr Part #:

LQH44PN1R0NP0L

Available from 3 distributors
Mfr Name: Murata
Murata
The Murata LQH44PN1R0NP0L is a shielded, wirewound fixed inductor with a 1 µH inductance value. It features a surface mount design and a ferrite core.
✓ Total Stock: 94,640 pcs
$ Price Range: $0.20

LQH44PN1R0NP0L Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
84,000 pcs
On Request
84000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request 21+ On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
640 pcs
On Request
640 pcs On Request 1 On Request On Request 11+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LQH44PN1R0NP0L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

LQH44PN1R0NP0L Description

Short technical summary and product information.

This Murata LQH44PN1R0NP0L is a fixed inductor from the LQH series, designed for surface mount applications. It utilizes a drum core and wirewound construction, offering a shielded design for reduced electromagnetic interference. The inductor provides an inductance of 1 µH with a tolerance of ±30% and a maximum DC resistance of 36 mOhm. It has a current rating of 2.45A and can operate within a temperature range of -40°C to 85°C. The package size is 1616 (4040 Metric), with dimensions of 4.00mm x 4.00mm and a height of 1.80mm. This component is suitable for applications requiring stable inductance and current handling capabilities.



The inductor is constructed with ferrite material and is designed for reflow soldering. The datasheet provides detailed soldering profiles for both reflow and flow soldering methods, specifying the use of Sn-3.0Ag-0.5Cu solder and rosin-based flux. Attention should be paid to potential magnetic coupling effects when using the inductor as a resonator. The operating temperature range is -40°C to 85°C, and it is classified with an MSL of 1.

LQH44PN1R0NP0L Quick Information

Product Type: Fixed Inductor
Canonical Name: Murata LQH44PN1R0NP0L Drum Core, Wirewound Shielded Inductor
Subcategory: Fixed Inductor

LQH44PN1R0NP0L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LQH44PN1R0NP0L Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

LQH44PN1R0NP0L Features

  • Shielded wirewound drum core inductor.
  • 1 µH inductance with ±30% tolerance.
  • Rated for 2.45A current.
  • Low DC resistance of 36mOhm max.
  • Surface mountable 1616 package.

LQH44PN1R0NP0L Applications

  • Suitable for RF circuits.
  • Used in power supply filtering.
  • Ideal for signal line applications.
  • General electronic circuit design.

LQH44PN1R0NP0L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the LQH44PN1R0NP0L?

The inductance is 1 µH.

What is the current rating for the LQH44PN1R0NP0L inductor?

The current rating is 2.45A.

What is the DC resistance (DCR) of this Murata inductor?

The maximum DC resistance is 36mOhm.

What is the operating temperature range for the LQH44PN1R0NP0L?

It operates between -40°C and 85°C.

What type of inductor is the LQH44PN1R0NP0L?

It is a shielded, drum core, wirewound inductor.

What are the dimensions of the LQH44PN1R0NP0L inductor?

The dimensions are 4.00mm x 4.00mm with a height of 1.80mm.

How should the LQH44PN1R0NP0L inductor be mounted?

It is designed for surface mount.
