| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
82,182 pcs
|
82182 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

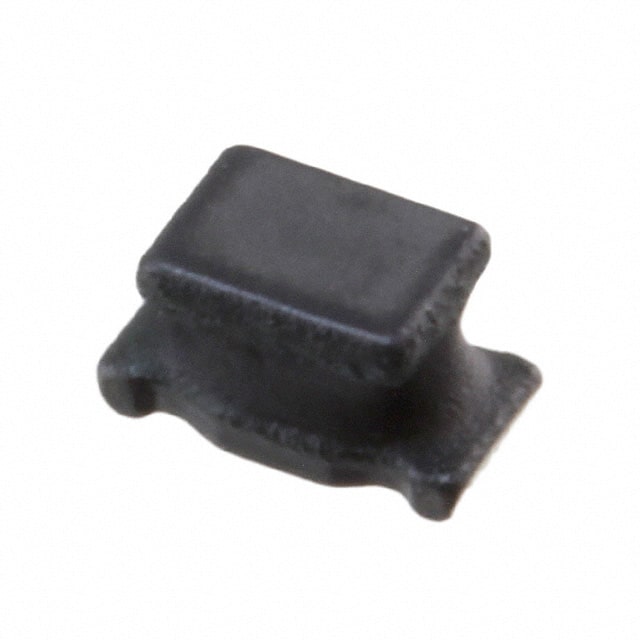

The Murata LQH31CN220K03L is a fixed inductor belonging to the LQH31CN series. It is designed with a drum core and wirewound construction, featuring an unshielded ferrite material.
This component offers an inductance of 22µH with a tolerance of ±10%. It has a rated current of 160mA and a maximum DC resistance of 3.9 Ohms. The self-resonant frequency is 14MHz, and it operates within a temperature range of -40°C to 85°C.
The inductor is housed in a 1206 (3216 Metric) surface mount package. Its dimensions are 3.20mm in length, 1.60mm in width, and 2.00mm in height. The LQH31CN220K03L is suitable for various electronic applications requiring stable inductance and current handling capabilities.
Compliance includes RoHS3, REACH Unaffected, and MSL 1 Unlimited. This part is ideal for applications where space is a constraint due to its compact size and surface mount design.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the LQH31CN220K03L is 22µH.
The maximum rated current for the LQH31CN220K03L is 160mA.
The maximum DC resistance is 3.9 Ohms.
This inductor operates within a temperature range of -40°C to 85°C.
The LQH31CN220K03L is available in a 1206 (3216 Metric) package.
