| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,000 pcs
|
18000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Supplier Device Package | |
| Termination Style | |
| Test Frequency | |
| Tolerance | |
| Type | |
| Width |

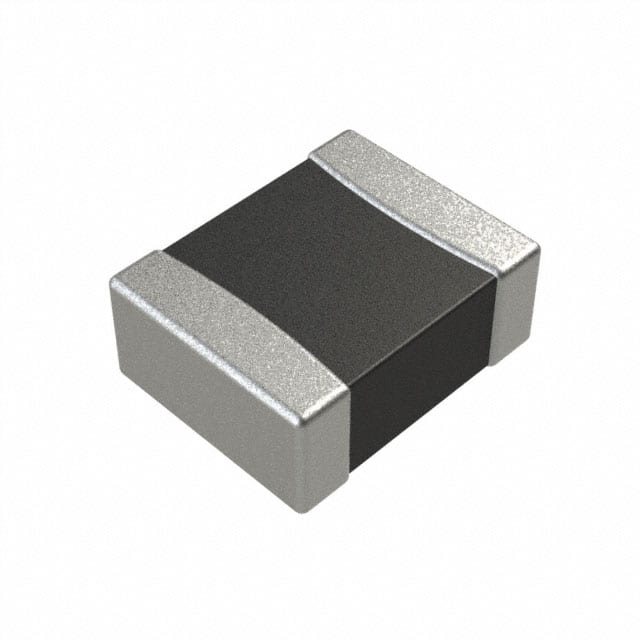

This Littelfuse LPWI201610B1R0T is a thin film power inductor designed for surface mount applications. It offers a compact and low-profile design with a 1µH inductance and a tolerance of ±20%. The inductor is shielded and rated for a maximum DC current of 3.2A, with a saturation current of 4.2A.
Key electrical characteristics include a low DC resistance of 46mΩ maximum and a wide operating temperature range of -40°C to 125°C. The core material is a metal alloy composite, contributing to high durability and reliability.
The component measures 2.00mm x 1.60mm x 1.00mm (0.079" L x 0.063" W x 0.039" H) and is supplied in a 0806 (2016 Metric) package, suitable for PCB mounting.
Applications for this inductor include DC-DC converters, power modules in general electronic equipment, mobile phones, tablets, portable devices, IoT modules, and various consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1 µH at 1MHz.
The maximum DC current rating is 3.2 A.
The maximum DC resistance is 46 mΩ.
The operating temperature range is -40°C to 125°C.
It is supplied in an 0806 (2016 Metric) package.
