| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Slew Rate | |
| Supplier Device Package | |
| Tape & Reel |
The Texas Instruments LPV321M5X is a single-circuit, general-purpose amplifier designed for a wide range of applications. It features a rail-to-rail output, allowing for maximum dynamic range. The amplifier operates with a supply voltage span from 2.7V to 5V, making it suitable for various power-constrained designs.
Key electrical specifications include a gain bandwidth product of 152 kHz and a slew rate of 0.1V/µs. The input bias current is 2 nA, and the input offset voltage is 1.5 mV. The device consumes a low supply current of 9µA and can deliver up to 60 mA of output current per channel.

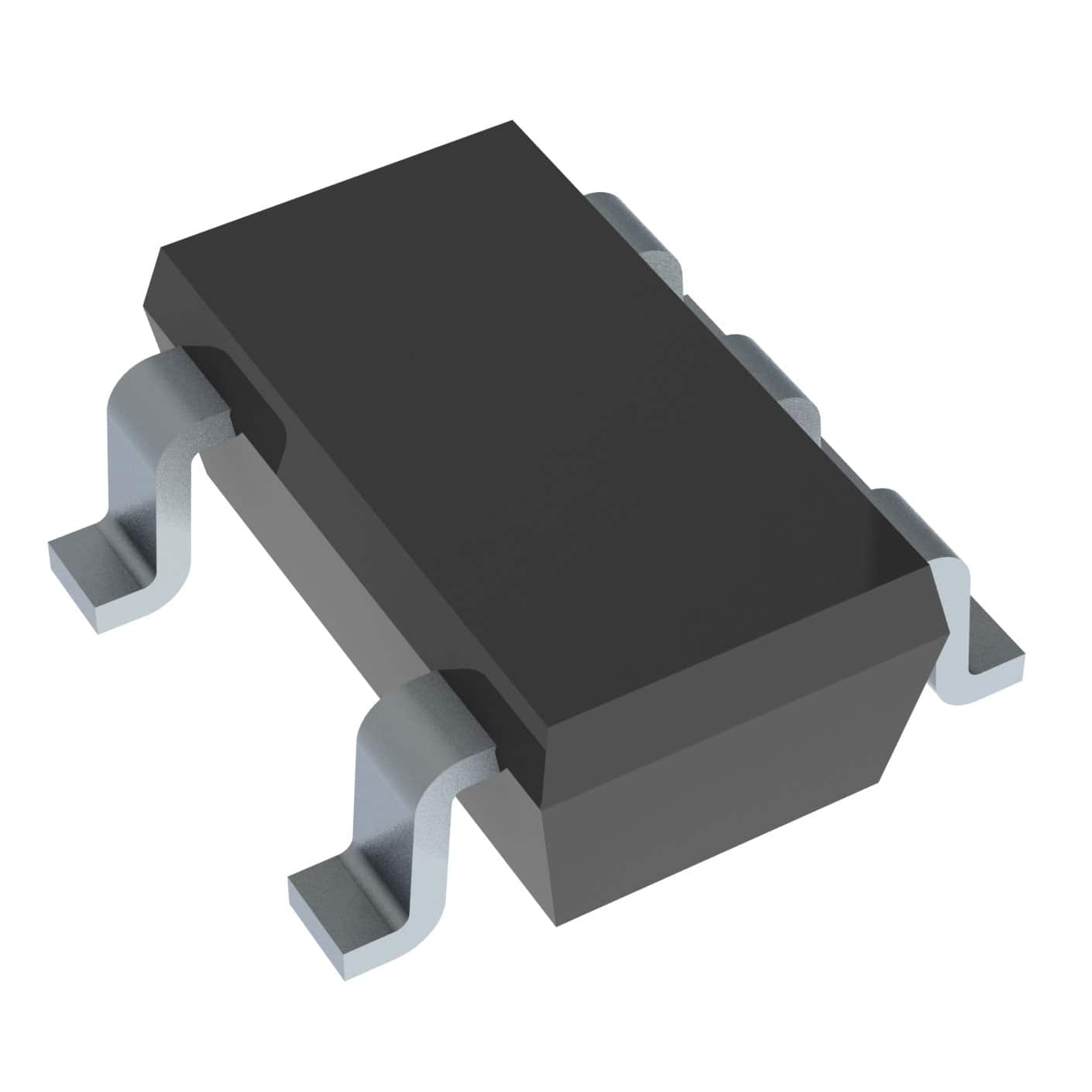

This component is available in a surface mount package, specifically SOT-23-5 (SC-74A | SOT-753). The operating temperature range is -40°C to 85°C. The product status is listed as obsolete.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.7 V to 5 V.
The operating temperature range is -40°C to 85°C.
It is available in SC-74A/SOT-753 and SOT-23-5 packages.
The gain bandwidth product is 152 kHz.
The slew rate is 0.1 V/µs.
The supply current is 9 µA.
The output type is rail-to-rail.
