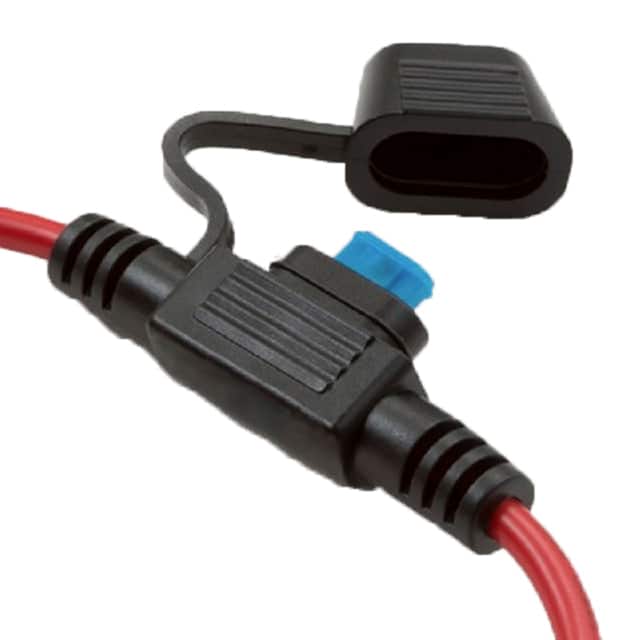

LPT-04B-16R OptiFuse LPT-04B-16R is a MICRO2 style blade fuse in-line fuse holder rated for 15A at 32VDC. It features 16 AWG red wire leads and a black PVC body.
Mfr Part #:

LPT-04B-16R

Available from 1 distributors
Mfr Name: OptiFuse
OptiFuse
OptiFuse LPT-04B-16R is a MICRO2 style blade fuse in-line fuse holder rated for 15A at 32VDC. It features 16 AWG red wire leads and a black PVC body.
✓ Total Stock: 10 pcs
$ Price Range: $6.16 - $8.56

LPT-04B-16R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
NTD Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LPT-04B-16R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Contact Finish
Contact Material
Current Rating (Amps)
For Use With
Fuse Type
Fuseholder Type
Ingress Protection
Lead Style
Mounting Type
Number of Circuits
Termination Style
Voltage
Wire Gauge
Wire Type
View Similar Products (0)

LPT-04B-16R Description

Short technical summary and product information.

The OptiFuse LPT-04B-16R is an in-line fuse holder designed for MICRO2 style blade fuses, with a free-hanging mounting configuration. It is rated for 15A at 32VDC, making it suitable for low-voltage automotive, marine, and industrial applications.



Electrical specifications include a 15A current rating and 32VDC voltage rating. The holder accepts MICRO2 blade fuses from APT and ANT series, ensuring broad compatibility with common fuse types.



Mechanically, the holder uses 16 AWG UL 1015 wire in red color, 5 inches in length, with wire leads termination. The contacts are made of brass with tin plating, and the body is black PVC. Ingress protection is rated IP67, providing dust and water resistance.



Environmental compliance includes RoHS3, REACH unaffected, and MSL 1 (unlimited). The part is packaged in a blister pack containing one piece.

LPT-04B-16R Quick Information

Product Type: Fuseholder
Series: LPT-04
Canonical Name: MICRO2 Style Blade Fuse In-Line Fuse Holder
Subcategory: In-Line Fuse Holder

LPT-04B-16R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LPT-04B-16R Estimated Pricing

Qty Low High
1+ $8.56 $8.56
10+ $7.54 $7.54
50+ $7.02 $7.02
100+ $6.50 $6.50
250+ $6.40 $6.40
500+ $6.27 $6.27
1,000+ $6.16 $6.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

LPT-04B-16R Features

  • Rated for 15A at 32VDC operation.
  • Accepts MICRO2 style blade fuses.
  • IP67 rated for dust and water.
  • 16 AWG UL 1015 wire leads.
  • Tin-plated brass contact material.

LPT-04B-16R Applications

  • Protects automotive wiring circuits.
  • Used in marine and RV applications.
  • Ideal for battery and power distribution.
  • Suitable for outdoor and harsh environments.
  • Provides inline fuse protection for equipment.

LPT-04B-16R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the LPT-04B-16R?

15 A.

What is the voltage rating?

32 VDC.

What type of fuse does this holder accept?

MICRO2 style blade fuses.

What is the wire gauge and length?

16 AWG wire, 5 inches long.

Is this fuse holder waterproof?

Yes, it has an IP67 ingress protection rating.

What is the mounting style?

Free hanging (in-line) with wire leads termination.

What materials are used?

Black PVC body, brass contacts with tin plating.
