LPS331APTR The STMicroelectronics LPS331APTR is an absolute piezoresistive pressure sensor with a digital output. It features a wide pressure range and low power consumption.
Mfr Part #:

LPS331APTR

Available from 3 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics LPS331APTR is an absolute piezoresistive pressure sensor with a digital output. It features a wide pressure range and low power consumption.
✓ Total Stock: 135,317 pcs
$ Price Range: $1.50

LPS331APTR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
135,198 pcs
On Request
135198 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
74 pcs
On Request
74 pcs On Request 1 On Request On Request 19+ On Request On Request
Chanetech ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LPS331APTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Applications
Features
Interface
Lead Spacing
Maximum Pressure
Mounting Type
Operating Pressure
Operating Temperature
Operating Voltage
Output
Output Type
Port Style
Power Consumption
Pressure Range
Pressure Type
Supplier Device Package
Termination Style
Voltage
View Similar Products (0)

LPS331APTR Description

Short technical summary and product information.

The LPS331APTR from STMicroelectronics is an ultra-compact absolute piezoresistive pressure sensor designed for a variety of applications. It offers a pressure range of 260 to 1260 mbar with a high-resolution mode of 0.020 mbar RMS. The sensor operates with low power consumption, drawing 5.5 µA in low-resolution mode and 30 µA in high-resolution mode.



Key features include embedded temperature compensation, a 24-bit ADC, and selectable output data rates from 1 Hz to 25 Hz. It supports both SPI and I2C interfaces and operates over a supply voltage range of 1.71 V to 3.6 V. The sensor boasts high shock survivability of 10,000 g and is guaranteed to operate within a temperature range of -40 °C to +85 °C.

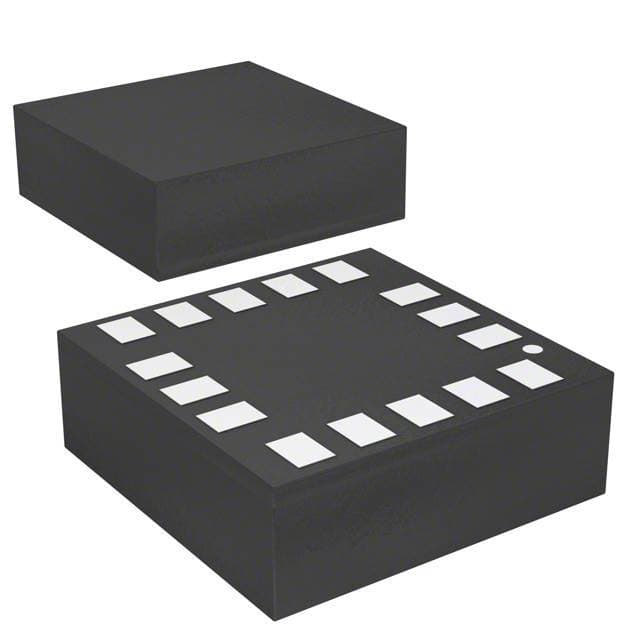

The LPS331APTR is housed in a small, thin 16-HCLGA package, suitable for surface mounting. The package is designed with a hole to allow external pressure to reach the sensing element. This sensor is ideal for applications such as altimeters and barometers for portable devices, indoor and outdoor navigation, and weather station equipment.

LPS331APTR Quick Information

Product Type: Pressure Sensor
Canonical Name: LPS331AP MEMS absolute digital output barometer pressure sensor
Subcategory: Absolute Pressure Sensor

LPS331APTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: ECOPACK® lead-free compliant

LPS331APTR Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

LPS331APTR Features

  • Absolute pressure sensor with 260-1260 mbar range.
  • High-resolution mode offers 0.020 mbar RMS.
  • Low power consumption down to 5.5 µA.
  • Integrated 24-bit ADC and temperature compensation.
  • SPI and I2C digital interfaces supported.

LPS331APTR Applications

  • Altimeter and barometer for portable devices.
  • Indoor and outdoor navigation systems.
  • Enhanced GPS for dead-reckoning.
  • Weather station equipment.
  • Sport watches.

LPS331APTR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating pressure range of the LPS331APTR?

The operating pressure range of the LPS331APTR is from 260 to 1260 mbar (3.77 to 18.27 PSI).

What interfaces does the LPS331APTR support?

The LPS331APTR supports SPI and I2C interfaces.

What is the maximum pressure the LPS331APTR can withstand?

The maximum pressure the LPS331APTR can withstand is 2000 kPa (290.08 PSI).

What is the operating temperature range of the LPS331APTR?

The operating temperature range of the LPS331APTR is from -40°C to +85°C.

Is the LPS331APTR RoHS compliant?

Yes, the LPS331APTR is RoHS3 compliant.
