| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Color Rendering Index | |
| Configuration | |
| Correlated Color Temperature | |
| Current | |
| Lens Type | |
| Lumens | |
| Luminous Flux @ Current | |
| Temperature | |
| Type | |
| Voltage |

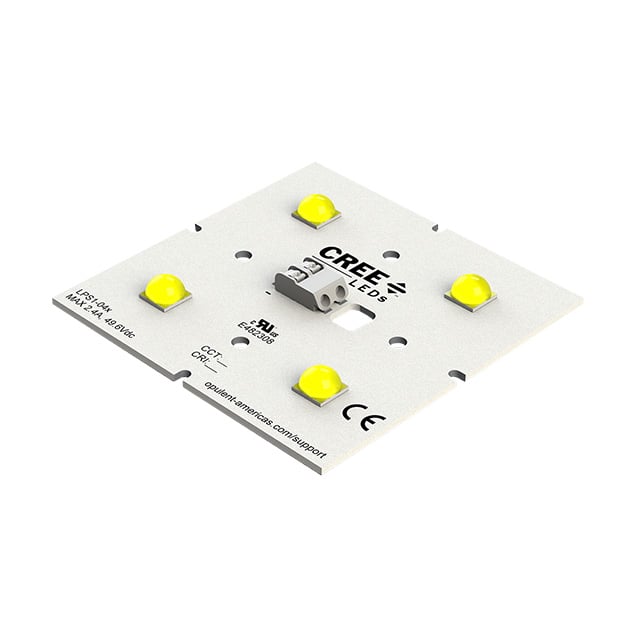

The New Energy LPS1-04C24-2790-00 is an LED module designed for lighting applications. It features a square configuration and a warm white color temperature of 2700K with a CRI of 80.
This module delivers a nominal luminous flux of 1485 lumens at 1.05A, with a luminous efficacy of 126 lm/W. The operating voltage is 44.8V, and the nominal power consumption is 11.8W, with a maximum of 28.8W. The module measures 70.00mm by 70.00mm.
It is built on a metal core PCB for optimal thermal management and includes pre-installed thermal interface material to simplify assembly. The Cree XHP70.2 LED technology is utilized, offering market-leading L90 and L70 lifetimes.
Primary applications include canopy, garage, high bay, high mast, and streetlight fixtures. The module is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.65 | $20.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Correlated Color Temperature (CCT) is 2700K 3-Step MacAdam Ellipse.
The CRI is 90.
The typical luminous flux is 5940lm at 1.05A.
The operating voltage is 44.8V.
The module measures 70.00mm in length and 70.00mm in width.
The nominal power consumption is 11.8W.
The luminous efficacy is 126 lm/W.
