| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CCT (K) | |
| CRI (Color Rendering Index) | |
| Color | |
| Configuration | |
| Current | |
| Lens Type | |
| Lumens | |
| Luminous Flux @ Current | |
| Operating Temperature | |
| Temperature | |
| Type | |
| Voltage |

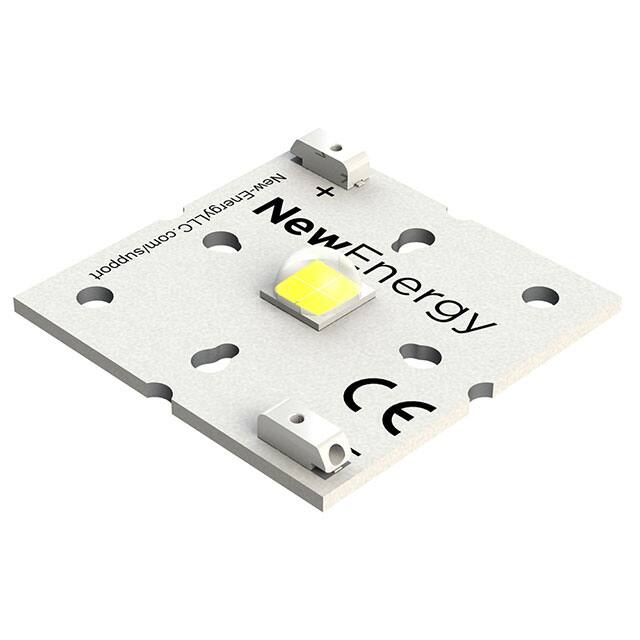

The New Energy LPS1-01C24-5070-00 is a square LED module from the Cree performance XHP70.2 series. It features a 5000K color temperature with a 70 CRI, providing a typical luminous flux of 1830 lumens at 1.05A and 11.2V. The module boasts an efficacy of 156 lumens per watt and operates at a nominal power of 11.8W, with a maximum power of 28.8W.
Designed for rapid integration into lighting fixtures, this module includes a pre-installed thermal interface material for simplified assembly. Its construction utilizes a metal core PCB for optimal thermal management. The module is suitable for various applications including streetlights, high bays, and architectural lighting.
Key specifications include a square configuration measuring 36.83mm L x 36.83mm W, a domed lens type, and an operating temperature of 85°C. It is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CCT is 5000K 5-Step MacAdam Ellipse.
The CRI is 70.
The typical luminous flux is 1830lm.
The efficacy is 156 lm/W.
The operating voltage is 11.2V.
The operating current is 1.05A.
The operating temperature is 85°C.
