| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

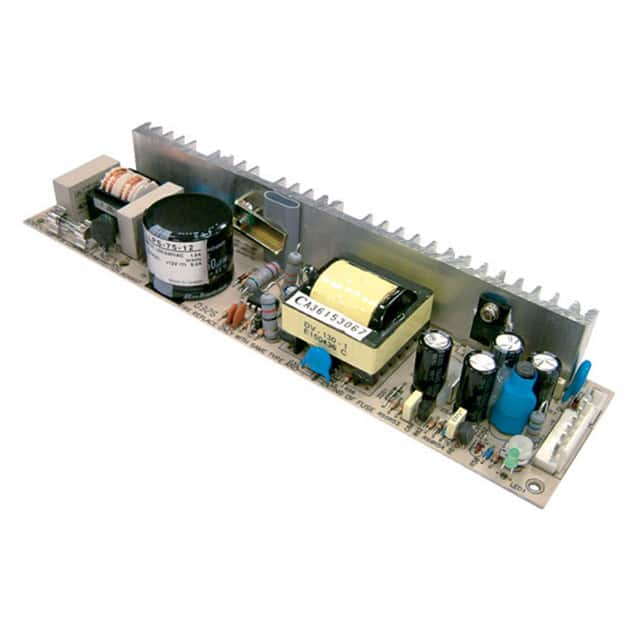

The Mean Well LPS-75-24 is a 77-watt, open-frame AC/DC power supply designed for various applications. It provides a stable 24V DC output at a rated current of 3.2A.
This power supply features a universal AC input range of 90-264VAC, making it suitable for international markets. It boasts a high efficiency of 83% and includes essential protections such as overload and over-voltage with hiccup mode recovery. The unit also supports remote on/off control.
With dimensions of 222mm x 55mm x 30mm, it is designed for chassis mounting. The operating temperature range is -20°C to 70°C, with cooling by free air convection. Compliance with safety standards like UL62368-1 and EMC standards such as BS EN/EN55032 Class B ensures reliable operation in commercial and industrial environments.
The output voltage is 24V.
The rated current is 3.2A.
The power output is 77W.
The input voltage range is 90-264VAC.
The operating temperature range is -20°C to 70°C.
Key features include adjustable output, remote ON/OFF control, and universal input.
It complies with UL62368-1, TUV BS EN/EN62368-1, and EAC TP TC 004.
