| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

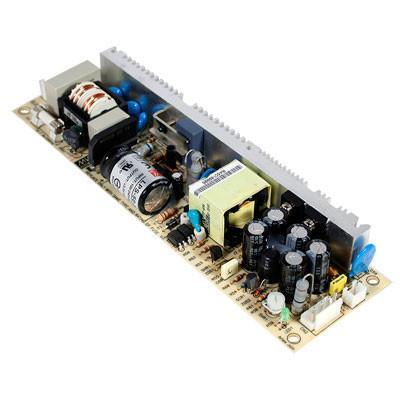

The Mean Well LPS-50-48 is a 53-watt AC/DC power supply from the LPS-50 series, designed for applications requiring a reliable 48V DC output. This open-frame unit offers a universal AC input range of 90-264VAC, making it suitable for global markets. It boasts a high efficiency of 86% and features like remote on/off control and adjustable output voltage.
The power supply is built for chassis mounting and has dimensions of 195.0mm x 55.0mm x 23.0mm. It operates within a wide temperature range of -20°C to 70°C and includes overload and over-voltage protection mechanisms. The LPS-50-48 is designed for ITE (Commercial) applications and is approved by CB, CE, cURus, and TUV.
Key electrical specifications include a rated current of 1.1A, an inrush current of 35A at 230VAC, and a leakage current of less than 1mA at 240VAC. The series also offers features such as hiccup mode for protection recovery. The unit has an MTBF of 195,000 hours, indicating robust reliability for demanding environments.
The LPS-50-48 has an output voltage of 48V.
The rated current for the LPS-50-48 is 1.1A.
The LPS-50-48 has a power rating of 53W.
The efficiency of the LPS-50-48 is 86%.
The operating temperature range for the LPS-50-48 is -20°C to +70°C.
The dimensions of the LPS-50-48 are 195.0mm x 55.0mm x 23.0mm.
The LPS-50-48 is approved by CB, CE, cURus, and TUV.
