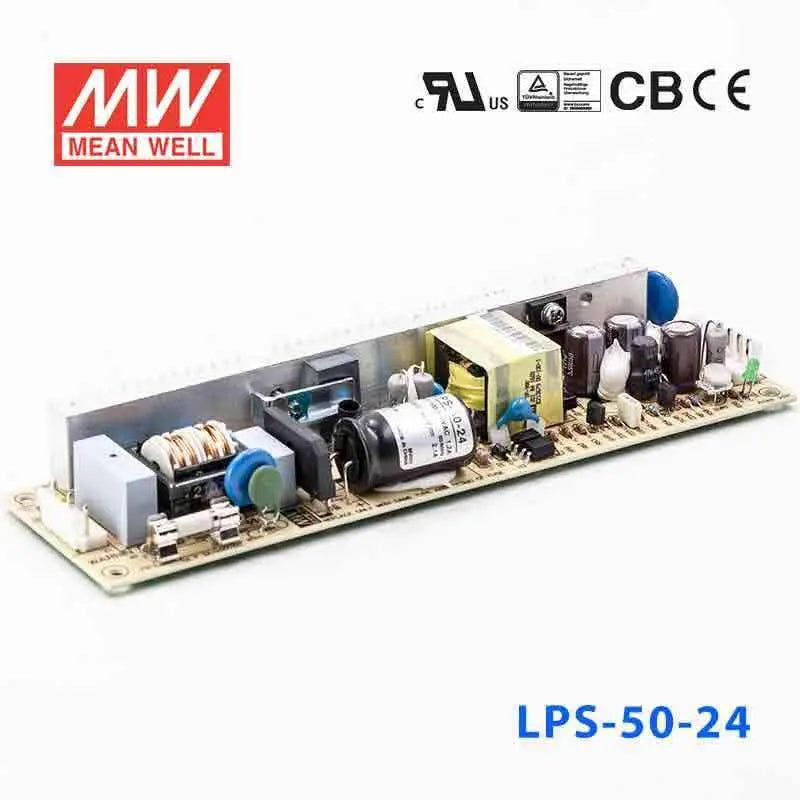

The Mean Well USA LPS-50-24 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers a nominal output voltage of 24V with a rated current of 2.1A, providing a total power of 50W. The unit accepts a wide input voltage range of 90-264VAC and features adjustable output voltage within ±10% of the rated output.
Key electrical protections include overload protection ranging from 122% to 160% and over-voltage protection from 110% to 135% of the rated output, both employing a hiccup mode with auto-recovery. The converter also includes a remote ON/OFF control function, allowing for external power management.
With a compact chassis mount design, the LPS-50-24 has dimensions of 195.0mm x 55.0mm x 23.0mm. It operates within a temperature range of -20°C to 70°C with derating and boasts an efficiency of 85% typical. Safety approvals include CB, CE, cURus, and TUV, with compliance to relevant EMC standards like BS EN/EN55032 Class B.
The LPS-50-24 provides a nominal output voltage of 24V.
The rated current for the LPS-50-24 is 2.1A.
The LPS-50-24 has a power rating of 50W.
The typical efficiency of the LPS-50-24 is 85%.
The LPS-50-24 accepts a universal input voltage range of 90-264VAC.
The dimensions of the LPS-50-24 are 195.0mm x 55.0mm x 23.0mm.
The LPS-50-24 operates within a temperature range of -20°C to 70°C, with derating.
