| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Package Quantity | |
| Power (Watts) | |
| Power Rating | |
| Rated Current | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Weight | |
| Width |

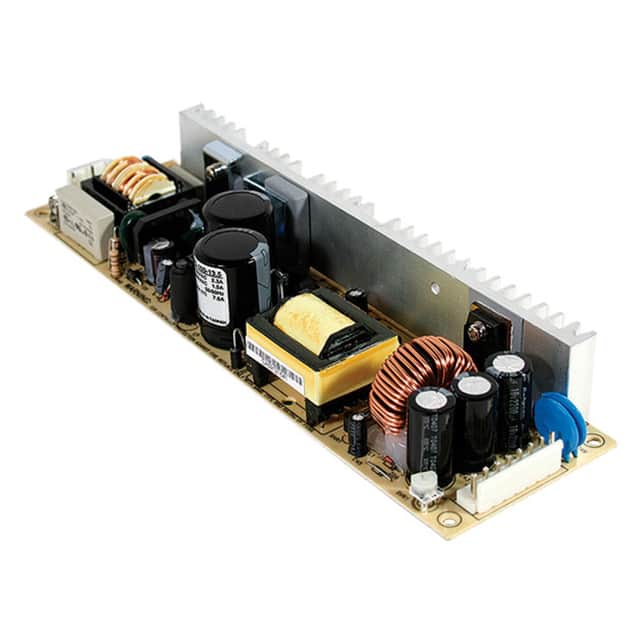

The Mean Well USA LPS-100-48 is an open frame AC/DC power supply designed for various applications. It operates with a universal AC input range of 90-264VAC and provides a stable 48V DC output voltage, delivering up to 100.8W of power. This unit features a chassis mount type, making it suitable for integration into systems requiring a fixed power solution.
Key electrical specifications include a rated current of 2.1A and an efficiency of 81%. The power supply incorporates overload and over-voltage protection mechanisms, with overload protection ranging from 115% to 150% and over-voltage protection from 110% to 135% of the rated output voltage. It also includes a withstand voltage rating of 3kVAC.
The operating temperature range for the LPS-100-48 is -20°C to +70°C, with derating applied. Its dimensions are 222.0mm x 62.0mm x 32.0mm (8.74" x 2.44" x 1.26"), and it weighs 0.99 lbs. The unit is certified by CB, CE, cURus, and TUV, adhering to safety standards like UL60950-1 and TUV EN60950-1, and EMC standards including EN55022 class B.
The operating temperature range is -20°C to +70°C (refer to output derating curve).
The converter is chassis mount with dimensions 222x55x30 mm and weight 0.99 lbs.
Output voltage is 48V DC at 2.1A, with a power rating of 100.8W.
It accepts a universal AC input of 90-264 VAC.
It includes overload protection (115%-150%) and over voltage protection (110%-135%).
It is approved to CB, CE, cURus, TUV standards, with safety standards UL60950-1 and TUV EN60950-1.
The warranty period is 2 years for the LPS series.
