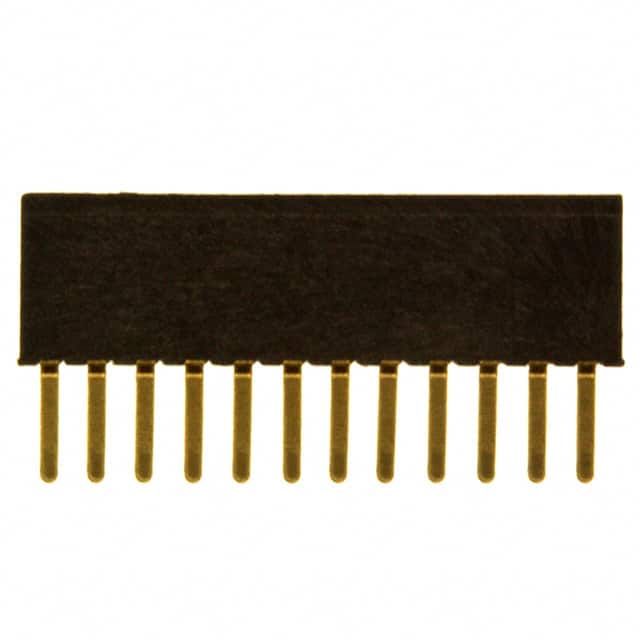

The Sullins Connector Solutions LPPB121NFFN-RC is a 12 position, single row female socket header designed for board-to-board interconnects. It features a 1.27mm (0.050") pitch and uses a push-pull fastening mechanism. The connector is through hole mounted with straight solder termination.
Electrical specifications include a 1A current rating. The insulator is made of LCP (Liquid Crystal Polymer) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with a gold flash finish overall. The operating temperature range is -40°C to 105°C.
Mechanical dimensions include an insulation height of 4.50mm (0.177") and a contact length of 3.00mm (0.118"). All 12 positions are loaded. The part number suffix NFF indicates a single row, straight through hole termination style.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.67 | $1.67 |
| 38+ | $1.29 | $1.29 |
| 114+ | $1.19 | $1.19 |
| 532+ | $1.07 | $1.07 |
| 1,026+ | $1.02 | $1.02 |
| 5,016+ | $0.91 | $0.91 |
| 10,032+ | $0.87 | $0.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LPPB121NFFN-RC has 12 positions in a single row, all loaded.
The pitch (contact center spacing) is 1.27mm (0.050").
The current rating is 1A.
It uses through hole mounting with straight solder termination.
The operating temperature range is -40°C to 105°C.
The contacts have a gold flash finish overall.
The insulator is made of LCP (Liquid Crystal Polymer) with a UL94 V-0 flammability rating.
