| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
64 pcs
|
64 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Termination |

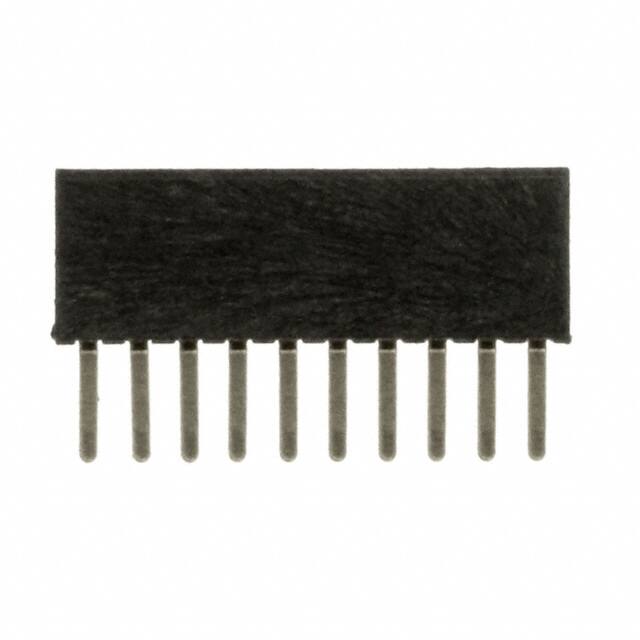

The LPPB101NFFN-RC is a 10 position, single row, female socket header from Sullins Connector Solutions. It uses a 1.27mm (0.050 inch) contact pitch and is designed for through hole mounting with push-pull fastening. The insulator is molded from LCP (Liquid Crystal Polymer) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with a gold flash finish overall. The connector is rated for 1 amp of current and has an operating temperature range of -40°C to 105°C. It has an insulation height of 4.50mm and a contact length (solder tail) of 3.00mm. This style is suitable for board to board applications. All 10 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.41 | $1.41 |
| 46+ | $1.07 | $1.07 |
| 138+ | $0.99 | $0.99 |
| 506+ | $0.91 | $0.91 |
| 1,012+ | $0.86 | $0.86 |
| 5,014+ | $0.77 | $0.77 |
| 10,028+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a 10 position connector with all positions loaded.
The contact pitch is 1.27mm (0.050 inches).
The current rating is 1 amp.
It uses through hole mounting with solder termination.
The operating temperature range is -40°C to 105°C.
