| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,608 pcs
|
1608 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

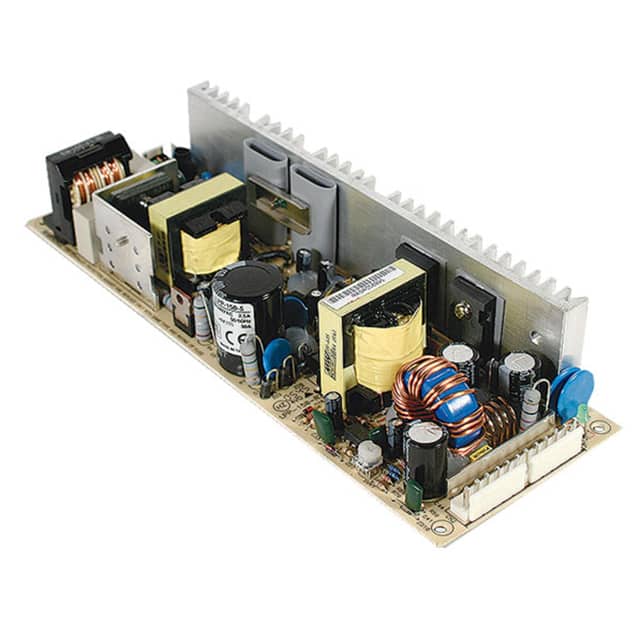

The Mean Well USA LPP-150-24 is an open frame AC DC converter designed for ITE (Commercial) applications. It delivers 151W of power with a single 24V output and a current rating of 6.3A.
This converter boasts an efficiency of 85% and includes features such as adjustable output, Power Factor Correction (PFC), and universal input. Its operating temperature range is -10°C to 70°C, with derating applied.
The unit is chassis mountable with dimensions of 222.0mm in length, 75.0mm in width, and 41.0mm in height. It has undergone approvals from agencies including CB, CE, cURus, and TUV, indicating compliance with various safety standards.
Additional specifications include a high voltage rating of 3 kV and compliance with RoHS3, REACH, and MSL Level 1 standards, though these compliance details are unverified.
The LPP-150-24 has a single output voltage of 24V.
The operating temperature range is -10°C to 70°C, with derating.
The dimensions are 222.0mm in length, 75.0mm in width, and 41.0mm in height.
It is approved by CB, CE, cURus, and TUV.
The RoHS status is Compliant.
The MSL is 1.
The REACH status is Unaffected.
